Stainless steel glove box C-type series

isolatorfor the pharmaceutical industrytempered glass

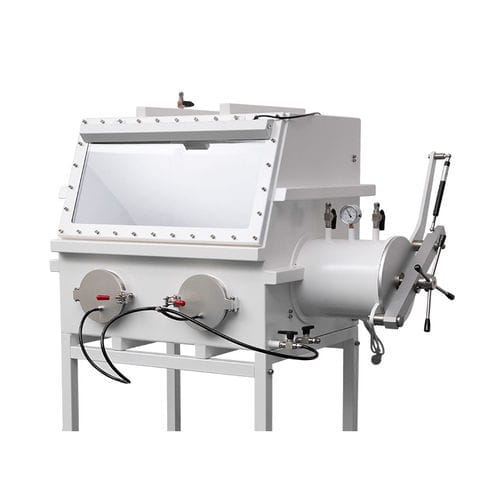

Stainless steel vacuum glove box（C-type） • The C-type of stainless steel glove box consists of a main chamber that can be evacuate, a antechamber that can be evacuate, two glove ports, a side door, a LED lighting, a inlet and a outlet ports, a vacuum pressure gauge, a power socket and two KF25 spare ports on the back. Reduce the moisture and oxygen parameter inside the box by vacuuming and supplementing inert gas to meet various experimental and production requirements. It is suitable for major university laboratories, scientific research institutes and high-tech enterprises, etc; The principle of the stainless steel C-type vacuum glove box is to evacuate the main chamber and then fill it with high-purity inert gas to reduce the moisture and oxygen parameter inside the box. 1. Made of SUS 304 # stainless steel material, not affected by most experimental materials, corrosion-resistant, and rust free; 2. The box has high strength and can be evacuated to -0.1Mpa. The outside of the box is reinforced with reinforcing ribs to ensure its durability; 3. The window is made of highly transparent tempered glass, and the upper part of the window is equipped with LED lighting. During the experiment, the visual acuity is clear and there are no blind spots; 4. The interior of the box is equipped with a power socket, which is convenient for connecting experimental instruments such as spin coating machines and scales; 5. The inlet and outlet of the box adopt a quick plug type, which is convenient for connecting the trachea. It can also choose a pagoda head and has a ball valve switch;
