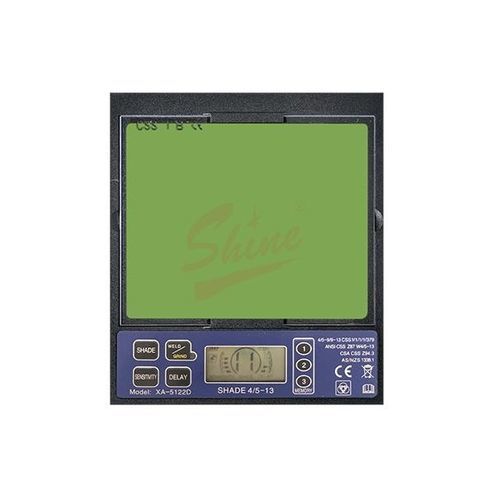

Welding fume filter XA-5122D
platewelding

welding fume filter
welding fume filter
welding fume filter
Add to favorites
Compare this product


Characteristics

Designed for
for welding fumes
Filtration element
plate
Applications
welding
Fluid temperature

Max.: 85 °C
(185 °F)

Min.: -20 °C
(-4 °F)

Description

Filter dimension - 133*114*9.5mm(4.5"x5.25") View size - 100*83.4mm(3.94"x3.28") CE Classification - 1/1/1/1 Sensors - 4 Light state - Shade 4 Dark state - Variable shade 5-9/9-13 Shade control - Internal Switching time - 0.08ms Sensitivity control - Adjustable(internal,digital control) Delay time control - 0.1-0.9S Adjustable Grinding function - Yes Low battery warning indicator - Yes Operation temperature - -10℃- 65℃(14℉-149℉) Storing temperature - -20℃- 85℃(-4℉-185℉) Power supply - Solar cell,replaceable battery(CR2450*1PCS) Inner protection lens - PL-5003 Minimum TIG welding current - 3A Maximum TIG welding current - 350A
