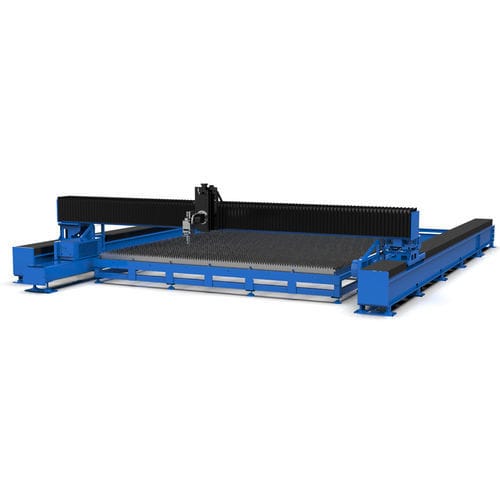

Laser cutting machine CGBfor aluminumfor stainless steelfor carbon steel
Add to favorites
Compare this product
Characteristics
- Technology
- laser
- Material
- for aluminum, for stainless steel, for carbon steel
- Product handled
- for metal sheets
- Control type
- CNC
- Applications
- for construction machinery
- Configuration
- large-format, 3-axis
- Other characteristics
- automatic, high-precision, high-speed, high-power, modular, custom-made
- X travel
3,030 mm, 6,030 mm
(119.29 in, 237.4 in)- Y travel
13,030 mm, 26,030 mm
(512.99 in, 1,024.8 in)- Z travel
200 mm, 400 mm
(8 in, 16 in)- Cutting speed
90 m/min
- Laser power
Max.: 120,000 W
Min.: 12,000 W
- Repeatability
0.1 mm
(0.0039 in)- Acceleration
7.85 m/s²
(25.75 ft/s²)
Description
Overview
This machine enables processing of large-format sheet materials. It features a segmented, spliced bed; overall format and bed length can be customized to suit project requirements.
Key Features
Product Description Notes
Large-format processing with configurable bed dimensions. Cutting width and machine length can be tailored to customer processing conditions to meet requirements for full-thickness plates.
Cutting Sample
Sample images on the product page illustrate typical cutting quality and results for reference.
Technical Parameters
Product Model: LY13030S; LY26035S; LY26040S; LY25052S
Processing Range: (13030mm-26030mm) X (3030mm-6030mm)
Y-axis stroke: 13030mm - 26030mm
X-axis stroke: 3030mm - 6030mm
Z-axis stroke: 200mm - 400mm
X-axis/Y-axis linkage speed: 90 m/min
X-axis/Y-axis acceleration: 0.8G
X-axis/Y-axis positioning accuracy: ±0.1 mm
X-axis/Y-axis repeated positioning accuracy: ±0.1 mm
Laser power options: 12 kW; 20 kW; 30 kW; 40 kW; 60 kW; 80 kW; 100 kW; 120 kW
Bevel: Optional
Technical Specifications
This machine enables processing of large-format sheet materials. It features a segmented, spliced bed; overall format and bed length can be customized to suit project requirements.
Key Features
- Large-format, high-power capability: cutting width and bed length are customizable to meet full-thickness plate cutting requirements.
- Intelligent and efficient bus control system: fast response, high precision, rapid data transmission and flexible cutting strategies.
- Modular expansion design: modular bed sections can be expanded to achieve ultra-large formats; length is customizable to support large-scale production.
- Fire-resistant insulation technology: new anti-burn insulation improves equipment lifespan and helps maintain cutting accuracy.
Product Description Notes
Large-format processing with configurable bed dimensions. Cutting width and machine length can be tailored to customer processing conditions to meet requirements for full-thickness plates.
Cutting Sample
Sample images on the product page illustrate typical cutting quality and results for reference.
Technical Parameters
Product Model: LY13030S; LY26035S; LY26040S; LY25052S
Processing Range: (13030mm-26030mm) X (3030mm-6030mm)
Y-axis stroke: 13030mm - 26030mm
X-axis stroke: 3030mm - 6030mm
Z-axis stroke: 200mm - 400mm
X-axis/Y-axis linkage speed: 90 m/min
X-axis/Y-axis acceleration: 0.8G
X-axis/Y-axis positioning accuracy: ±0.1 mm
X-axis/Y-axis repeated positioning accuracy: ±0.1 mm
Laser power options: 12 kW; 20 kW; 30 kW; 40 kW; 60 kW; 80 kW; 100 kW; 120 kW
Bevel: Optional
Technical Specifications
- Product Model: LY13030S; LY26035S; LY26040S; LY25052S
- Processing Range: (13030mm-26030mm) X (3030mm-6030mm)
- Y-axis stroke: 13030mm - 26030mm
- X-axis stroke: 3030mm - 6030mm
- Z-axis stroke: 200mm - 400mm
- X-axis/Y-axis linkage speed: 90 m/min
- X-axis/Y-axis acceleration: 0.8G
- X-axis/Y-axis positioning accuracy: ±0.1 mm
- X-axis/Y-axis repeated positioning accuracy: ±0.1 mm
- Laser power options: 12 kW; 20 kW; 30 kW; 40 kW; 60 kW; 80 kW; 100 kW; 120 kW
- Bevel: Optional
