Fiber laser welding machine U series

manualfor metalcompact

Product name

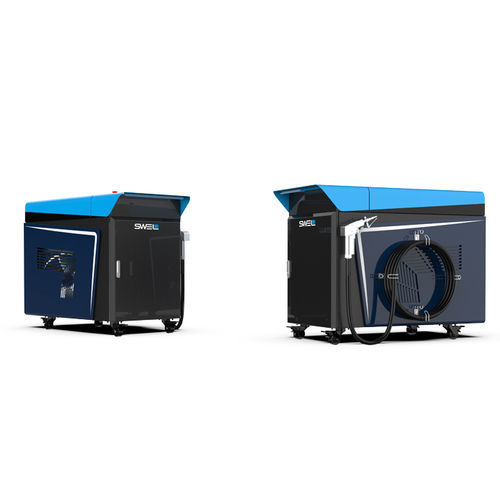

Handheld Laser Welding Machine U Series

Overview
The U Series handheld laser welding machine is a portable solution for flexible, long-distance welding where mobility and precision are required. It is supplied with professional welding software and an ultra-long fiber connection to enable welding over extended distances and large assemblies.

Key features

• Compact, portable housing for on-site and remote welding
• Welding speed 3–10× faster than conventional argon arc and plasma welding
• Small heat-affected zone with deep penetration and high joint strength
• Manually rotating laser welding head with interchangeable accessories for varied weld types
• Safety metal-detection interlock: laser emits only on metal contact and locks when removed
• Scanning welding capability with adjustable weld width to optimise seam quality
• Ultra-long, high-quality optical fiber and connector box for flexible long-distance operation

Applications / Usage notes
Designed for long-distance, flexible welding tasks across sectors requiring high speed, deep penetration and minimal thermal distortion — for example, large structures, repair work, on-site assembly and maintenance.

Specifications / Technical data

• Series / Model: U Series
• Commercial name: Handheld Laser Welding Machine
• Power range: 1500W–3000W
• Welding speed: 3–10× faster than argon arc and plasma welding
• Weld quality: small heat-affected zone; deep penetration; high weld strength
• Head: manually rotating laser welding head; interchangeable accessories
• Software: professional welding software optimised for long-distance welding
• Safety: metal-detection safety interlock (laser emits only on metal contact)
• Function: scanning welding with adjustable weld width
• Optical fiber: ultra-long, high-quality fiber for long-distance flexible welding
