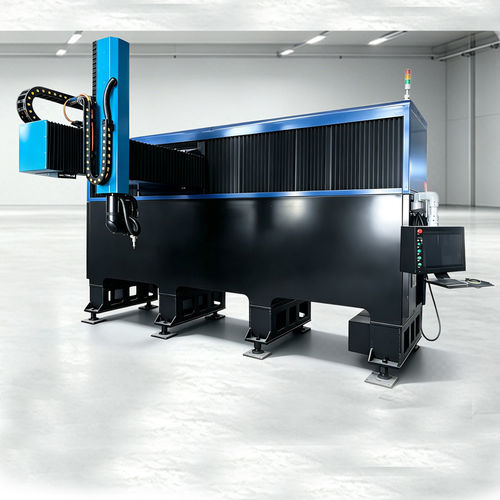

Laser cutting machine XPG

for metalsheet metalCNC

Overview
High-precision, high-repeatability cutting of formed 3D metal parts. Full closed-loop linear motors, internal/external dual beam path and 5-axis RTCP make the machine suitable for automotive, aerospace and engineering machinery production lines.

Key features

• 01 Compact cantilever: single-column structure with three-side open load/unload, requiring about 40% less floor space than a gantry system.
• 02 Fast & stable: zero-backlash linear-motor drive with 5-axis RTCP delivers up to 1.75× per-part output versus robot cutting.
• 03 One-setup 3D machining: trim, pierce, bevel and weld-prep in a single clamping; RTCP keeps the beam normal to the surface for consistent results.
• 04 Smart & connected: open G-code control, OPC UA cloud monitoring and MES-ready automation for unmanned production lines.

Dual beam-path cutting head

• Internal path (3–6 kW): beam routed inside the head — compact, sealed and dust-proof with minimal maintenance points; ideal for high-tempo continuous cutting.
• External path (3–12 kW): beam guided via external conduit/mirrors — flexible routing, wide posture reach, easy maintenance and scalable to higher powers.

Teach pendant & programming

• Robot-style teach pendant for cutting and welding — program directly on the machine; no CAD model required.
• No digital model needed: teach on-site using the pendant's physical controls and touchscreen.
• Built-in macros: standard holes, rectangles and polylines callable with one click.
• Fast part teach-programming: lowers the programming barrier and reduces setup time.

Process capability

• Trimming: flexible edge trimming of formed parts, replacing trim dies.
• Piercing: accurate, burr-free any-angle holes on 3D surfaces.
• Bevel: 5-axis posture cuts weld bevels for one-shot welding.
• Cut + Weld: integrated cutting and laser welding on a single platform.

Additional product notes

• RTCP simultaneous operation with high repeatability.
• Fiber laser power options referenced on the page: 3–12 kW.
• Designed to reduce floor space and increase per-part throughput compared with robot cutting.

Technical characteristics / specifications

• Axes: 5-axis with RTCP (Real-Time Contour Processing).
• Repeatability: ±0.03 mm (page reference).
• Fiber laser power range (page reference): 3–12 kW.
• Efficiency vs robot: ~43% time saved on the same part; ≈1.75× output vs robot cutting.
• Max thickness @ 6 kW: Carbon steel ≤ 12.5 mm.
• Max thickness @ 6 kW: Stainless steel ≤ 8 mm.
• Max thickness @ 6 kW: Aluminum ≤ 6 mm.
• Max thickness @ 6 kW: Brass/Copper ≤ 4 mm.
• Head options: internal beam-path head (sealed, dust-proof) and external beam-path head (conduit/mirror routing).
• Control: open G-code; teach pendant with touchscreen; built-in macros.
