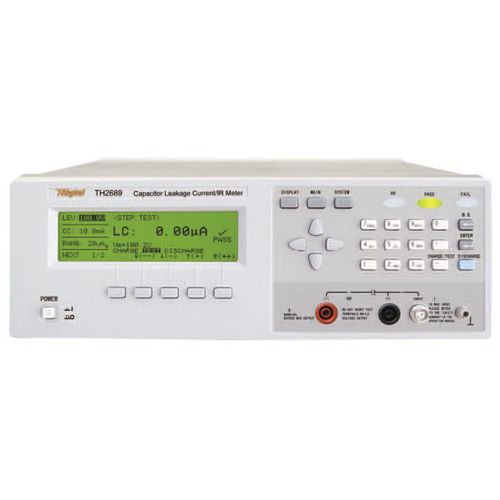

Capacitance tester TH2689
insulation resistanceleakage currentcapacitor

capacitance tester
capacitance tester
capacitance tester
capacitance tester
capacitance tester
capacitance tester
Add to favorites
Compare this product


Characteristics

Test type
insulation resistance, leakage current, capacitance
Tested product
capacitor

Description

Capacitor Leakage Current/IR Meter Output Voltage: 1V-800V. Test Range, LC: 0.001uA-20.00mA; IR, 0.01MΩ-99.99GΩ. Max Charge Current: 500 mA. LCD Display. Features ■ Capacitance leakage test function ■ Insulation resistance test function ■ Aluminum foil pressure and rise time test function ■ Precise low current charge function(0.5mA±0.05mA) ■ Large current (500mA)improves the charge speed of low voltage large capacitance. Continuously adjust Test voltage(TH2689 1.0V~800V/TH2689 1.0V~500V) and real-time monitor the output voltage ■ Test range from 0.001uA─20.00mA, 4 digit display ■ Open correction(null) to eliminate the remaining base number ■ Built-in digit counter ■ Comparator function to realize the sorting of PASS/FAIL ■ 10 groups of status for save and load ■ Standard RS232 interface, Handler interface, optional GPIB interface ■ Large LCD ( 240×64 dot-matrix )display ■ Humanized operation interface Brief Introduction TH2689/TH2689A is a rapid and precise capacitance leakage current insulation resistance tester. The max. test speed of 18 times/second, good performance and the suitable price provide the user an optimal choice. TH 2689/TH2689A provides max. test voltage: 800v/500v, charge current: 0.5mA─500.0mA( if >100V, the max. power 50W can limit). It is mainly applied in capacitance leakage current, insulation resistance and aluminum electrolysis capacitance anode foil pressure test. Also it can be applied in the confirmation of annihilator, zener diode, neonbulb .etc and leakage current test. Standard Handler interface, stable and rapid test, to reach the sorting effect
