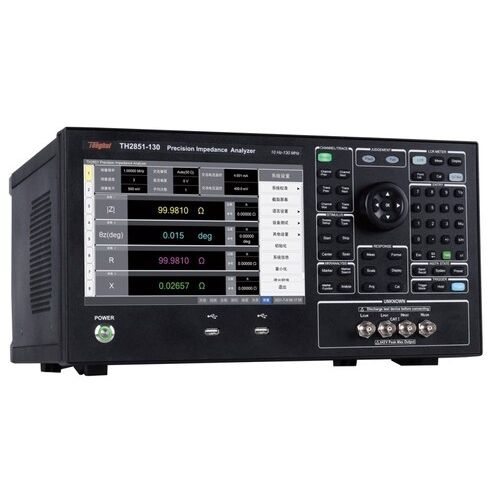

Electric analyzer TH2851-030

impedancebenchtopmulti-parameter

Features ■ Test frequency: 10Hz-30MHz ■ High precision: using automatic balance bridge technology, four-terminal pair test configuration ■ High stability and consistency ■ High speed: the fastest test speed up to 5ms ■ High resolution: 10.1-inch capacitive touch screen, resolution 1280*800 ■ Three test methods: point test, list scan, and graph scan ■ 1601 point multi-parameter list scanning function ■ Four-parameter measurement ■ 4-channel graphic scanning function, each channel can display 4 curves, 16 kinds of split-screen display modes for channels and curves ■ Powerful sorting: 10 grades sorting in LCR mode ■ Graphic scanning mode, each curve is sorted individually ■ High compatibility: Support SCPI instruction set, compatible with KEYSIGHT E4990A, E4980A, E4980AL, HP4284A Applications ■ Passive component: Impedance parameter estimation and performance analysis of capacitor, inductor, magnetic core, resistor, piezoelectric devices, transformers, chip components and network components ■ Semiconductor component Parasitic parameter test and analysis of LED driver integrated circuit C-VDC features of varactors Parasitic parameter analysis of transistors or integrated circuit ■ Other components Impedance assessment of printed circuit boards, relays, switches, cables, batteries ■ Dielectric material Dielectric constant and loss angle evaluation of plastics, ceramics and other materials ■ Magnetic materials Magnetic permeability and loss angle assessment of ferrite, amorphous body and other magnetic materials ■ Semiconductor materials Dielectric constant, electrical conductivity and C-V characteristics of semiconductor materials
