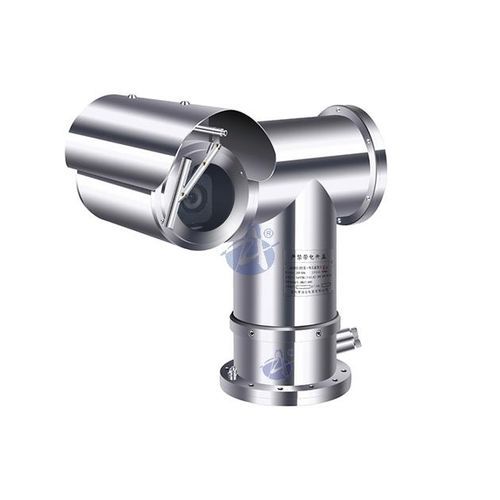

PTZ camera ZAT610-3

industrialanalogmonitoring

ZAT610-3 is an explosion proof ptz camera with wiper system. Made of stainless steel enclosure, the explosion proof ptz camera of ZAT610-3 can apply for industry aggressive area with explosive gas,oil,chemical, powders. Mechanical Housing Stainless steel 304 or 316L IP IP68 Cable thread hole 1pcs G3/4 or NPT3/4 Wiper yes Electrical Voltage AC85V～AC265V or DC24V or AC24V, PoE++（DC48V) Power 50W /70W (with thermostat) Ambient Ambient temperature -50 to +60℃ Air pressure 80Kpa to 106Kpa Relative Humidity ≦95% (no condensation) Communication Communication support analog video output 485 Communication Support Pelco-D, Pelco-P Communicate Rate 2400 to 19200bps Pan & Tilt Horizontal 360° Horizontal speed 0.1-45°/s Vertical -90 to +90° Cruise Scan Support Keep watch Support Preset 64/128/255/300 Resume function Support Auto Cruise Support Auto Pattern Support Auto Scan Support Camera Image Sensor 1/3" interline-transfer CCD Effective pixel PAL 976*582 NTSC 976*494 Min. Illumination Color 0.04Lux B/W: 0.004Lux Shutter Time 1/50(1/60) sec~ 1/10,000 sec Day&Night Auto ICR Horizontal resolution 700TVL (color), 720TVL (B&W) S/N ratio ＞50dB（AGC off）
