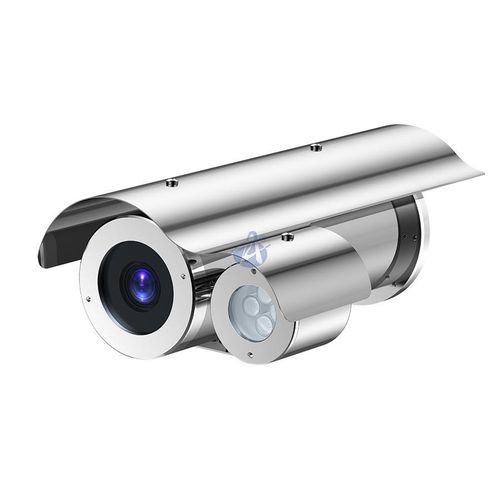

Industrial camera CZ1035B (F)

digitalIRfull-color

CZ1035B is a ZUOAN designed classic explosion-proof camera, which can load various camera.The explosion proof camera can apply for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. It’s applicable for refining and chemical industry, oil extraction, gas production, fireworks production, grain production and storage, petrol station and so on. Features: ·ATEX, IECEx Certified; ·Applicable for Gas Zone 1, Zone 2,Class II A, IIB, IIC, T1-T6 group,Dust Zone 21, 22. ·Certified for the latest standards IEC/EN60079 ·Stainless steel 304 or 316L enclosure ·Surface optional electro-polished or painting ·Weather Proof IP68(2m/2h) ·Wide voltage input: AC100-240V or AC24V or DC24V or PoE++ ·Strong tempered glass, fit for hydrofluoric acid area ·Intelligent window defroster design ·Equipped with infrared light for night vision ·Equipped with wiper to keep window clean ·Auto temperature adjust kit for aggressive area ·High precision wiper , support user-defined ·Fit for various brand cameras ·Wall, pole, ceiling or corner mounted way Camera Sensor 1/2.8", 8.0megapixel, progressive scan, CMOS Minimum Illumination Color: 0.0025 lux (F1.6, AGC ON) 0 lux with IR on Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s WDR 120dB S/N >56 dB Lens Lens 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens Iris Fixed Field of View (H) 107.4° ~ 29.2° Field of View (V) 54.2° ~ 16.3° Field of View (D) 111.0° ~ 33.1°
