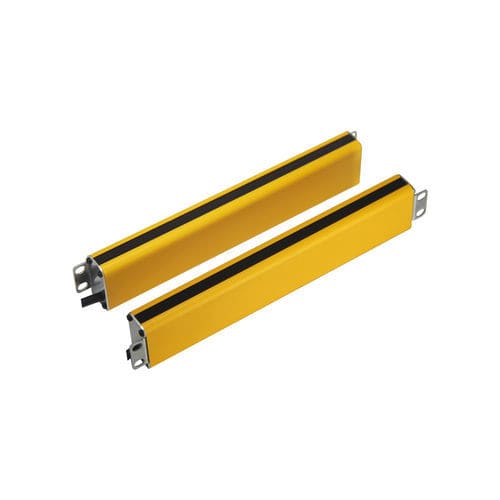

Type 2 safety light curtain CSL40-T0342DN2-Amultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- type 2 safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Other characteristics
- cascade
- Operating range
Min.: 0.1 m
(0'03" )Max.: 3 m
(9'10" )
Description
Product name
CSL40-T0342DN2-A — CSL series safety light curtain
Main features
Technical specifications
Mechanical / Electrical parameters
Recommended applications
Characteristics / technical specifications
CSL40-T0342DN2-A — CSL series safety light curtain
Main features
- Product type: side ultra-thin
- Detection range: 0–2 m
- Detection principle: through-beam (opposed)
- Output: NPN NC
- Supply voltage: 24 V DC
- Protection rating: IP65
Technical specifications
- Cable length: 0.5 m
- Synchronization: wired synchronization
- Beam pitch: 40 mm
- Number of beams: 42
- Protective height: 1640 mm
- Included accessories: user manual, certificate of conformity, mounting brackets, mounting screws
Mechanical / Electrical parameters
- Output type: NPN NC
- Supply voltage: 24 V DC
- Protection rating: IP65
- Connection type: cascadeable / relay-type
- Signal type: switching output
- Operation mode: active on interruption (Dark ON)
- Mounting: top and bottom installation
Recommended applications
- 3C electronics manufacturing
- Automated parking systems
- Logistics and warehousing
Characteristics / technical specifications
- Product type: side ultra-thin
- Detection range: 0–2 m
- Detection principle: through-beam
- Output: NPN NC
- Supply voltage: 24 V DC
- Protection rating: IP65
- Number of beams: 42
- Protective height: 1640 mm
