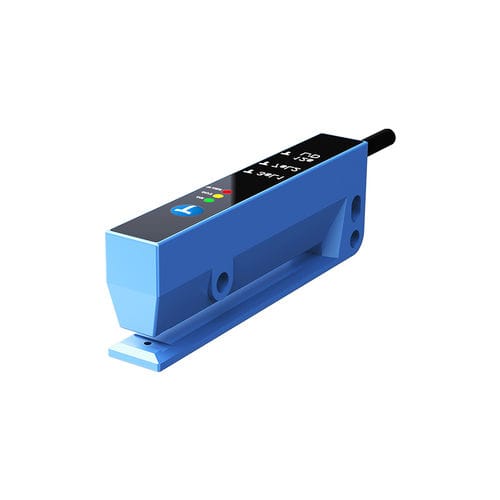

Through-beam photoelectric sensor CPL-TF3DP3-A

rectangularinfraredhigh-speed

1. **Naming Rule**
Detection principle: Slot‑through label sensor; Slot dimension: 3 mm width, 60 mm depth.
Connection: 5‑core PVC cable. Suffix‑A: external output terminal version.
‑ **NPN type**: CPL‑TF3DN3, CPL‑TF3DN3‑A
‑ **PNP type**: CPL‑TF3DP3, CPL‑TF3DP3‑A
2. **Available Part Numbers**
CPL‑TF3DN3, CPL‑TF3DN3‑A, CPL‑TF3DP3, CPL‑TF3DP3‑A
3. **Detection Principle**
Slot‑type label sensor detects labels of semi‑transparent, metallic and other materials. It supports square, round and special‑shaped labels. Output status changes when label passes through the slot gap. Dark‑ON / Light‑ON selectable via teaching button.
4. **Sensing Range**
Slot size: 3 mm width, 60 mm depth.
Max detectable belt speed: 20 m/min (0.33 m/s).
Response frequency: ≥10 kHz; Response time: ≤50 μs.
Logic level: High level ≥8V, Low level ≤2V; Input resistance typical 1515 kΩ.
5. **Main Model Versions**
NPN / PNP transistor open‑collector output.
Power supply: DC12‑24V, ripple(P‑P) ≤10%, Max DC10‑30V.
Supply current: ≤30 mA.
Cable definition: Brown:+V; Blue:0V; Black:Normally‑open output; White:Normally‑closed output; Pink:External output.
6. **Key Features**
‑ Housing material: PA6+GF30%
‑ Protection circuit: Reverse‑power‑supply protection, load short‑circuit protection, output reverse‑connection protection
‑ Withstand voltage: AC1000V 50/60Hz 1 min
‑ Vibration & shock: 10‑55Hz, amplitude 1.5 mm, X/Y/Z axis 2 h; 300 m/s² shock resistance
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑25~+70 ℃ (non‑icing, non‑condensation)
‑ Humidity: Operating 35‑85%RH; Storage 35‑95%RH
‑ Protection grade: IP65
‑ Cable: 5‑core PVC insulated cable, 0.2 mm² conductor cross‑section
‑ Weight: approx. 65 g
7. **Operation Mode**
Dark‑ON / Light‑ON, selectable via teaching button.
8. **Output Options**
NPN / PNP transistor open‑collector output, with NO / NC dual‑output.
>
> Accessories: Instruction manual, Certificate of compliance, mounting bracket, screws.
