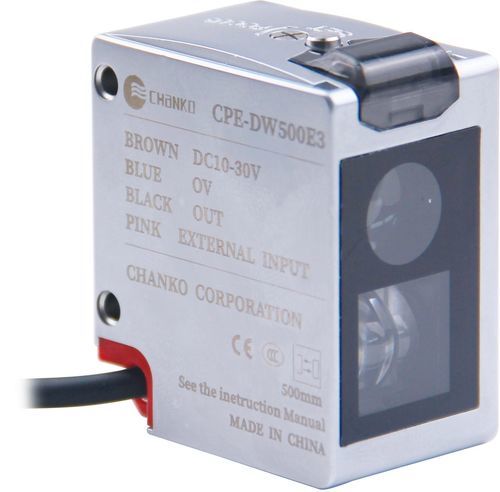

Diffuse reflective photoelectric sensor CPE-DW500E3squarewhite lightanalog
Add to favorites
Compare this product
Characteristics
- Sensing mode
- diffuse reflective
- Housing
- square
- Type of beam
- white light
- Other characteristics
- metal, analog
- Applications
- for logistics
- Maximum range
Max.: 0.5 m
(1'07" )Min.: 0.1 m
(0'03" )
Description
Product summary
Technical specifications
Mechanical / Electrical parameters
Operating environment
Recommended applications
Accessories
Features / technical data
- Type: Diffuse-reflective photoelectric sensor
- Model: CPE-DW500E3
- Detection range: 50–500 mm
- Output: NPN / PNP / Analog (switch + analog)
- Housing: Large square; Dimensions: 45.2 × 38.1 × 24.6 mm
Technical specifications
- Detection range: 50–500 mm
- Detection principle: Diffuse reflection
- Cable length: 2 m
- Sensing direction: Front
- Response time options: 200 μs / 1 ms / 10 ms / 100 ms / 500 ms
- Light source: White light
- Accessories: Manual, conformity certificate
- Materials: Housing: zinc die-cast (chrome plated); Indicator cover: PPSU; Button: stainless steel
Mechanical / Electrical parameters
- Output type: NPN / PNP / Analog
- Supply voltage: DC 10–30 V
- Protection rating: IP65
- Signal type: Switch + analog
- Connection: Molded cable
- Protection circuits: Reverse polarity, supply surge, output overcurrent, output surge protection
- Current consumption: < 50 mA
Operating environment
- Ambient temperature / Vibration: 10–55 Hz, double amplitude 1.5 mm, X/Y/Z directions, 2 hours
- Ambient humidity: 35–85% RH
- Shock resistance: 1,000 m/s², X/Y/Z directions, 6 impacts
Recommended applications
- 3C electronics manufacturing
- Automated parking systems
- Logistics and warehousing
Accessories
- Manual
- Conformity certificate
Features / technical data
- Model: CPE-DW500E3
- Type: Diffuse-reflective photoelectric sensor
- Detection range: 50–500 mm
- Outputs: NPN / PNP / Analog (switch + analog)
- Supply: DC 10–30 V
- Protection: IP65
- Response time options: 200 μs, 1 ms, 10 ms, 100 ms, 500 ms
- Cable length: 2 m (molded cable)
- Housing material: Zinc die-cast (chrome plated)
