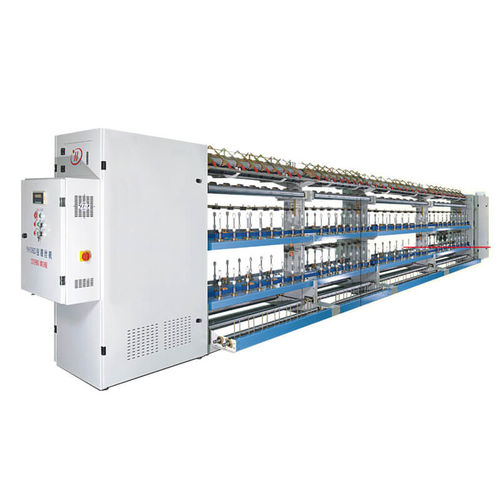

Yarn winding machine YH-116D

fabricautomatic

Metallic Yarn Covering Machine YH-116D * The metallic Covering Machine is suitable for MX, MH type covered * It is corded by Metallic Yarn and covered by Nylon, Polyester and others; it's depending on the operator. * The MX, MH type are used for the fabric weaving and knitting. Position single Covering - 128 Double covering - 256 Single Covering Install Power - 7.5/7.5KW - 7.5/7.5KW No. of Section - 8 No. of spindle/Section - 32 Spindle Pitch - 200mm Twist Rang - 200~3500 Speed of Spindle RPM - 7000-14000 Spindle Drive - Tangential Belt Speed Adjustment - Inverter or Pulley Take-up Packing-mm - Straight Bobbin §60*§56*160mm or §69*§56*160mm Take-up Packing-G - <1000G Take-up Forming - Mechanical Forming Twisting direction - S.Z Twisting
