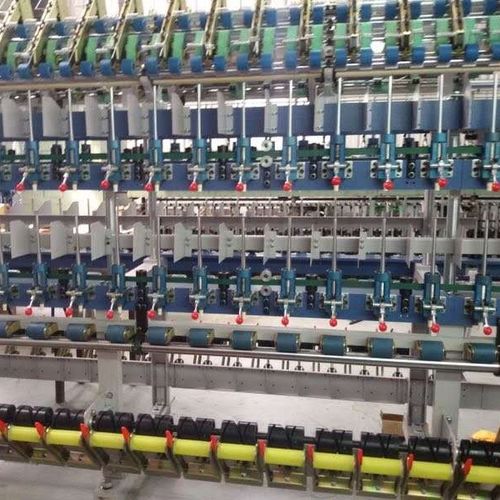

Computer control Fancy Yarn Machine(YH-08A-1-3DD)
This machine is suitable for one-step processing parallel yarn, loop yarn,wave yarn, slub yarn, knot yarn or fancy yarn with their mutual combination .
Raw material can be wool, linen, chemical fiber filament as roving, striped or yarn feeding .The production can be used for weaving, knitting, weaving.
All parameters can be set , amended ,stored and shown by PLC and human-machine operation. It controls 7 sets of frequent converter speed to make one-step fancy yarn .
Spindle - 128
Spindle pitch - 150mm
Fiber length - 60-190mm
weaves - 1-30NM
Spindle Speed - Max. 10000RPM
Machine Speed - Max. 35m/min
Raise and Fall - 270mm
Cone Size - 250*90mm(According to customer)
Power - 19.7kw
Dimension - 12500*3400*2350mm
