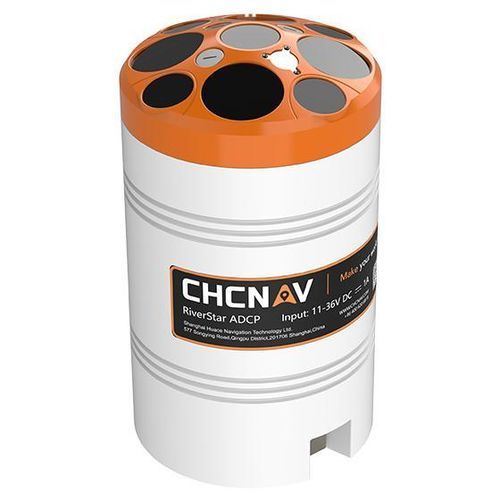

Doppler ultrasonic current meter RS3600Dfor waterportablefor marine applications
Add to favorites
Compare this product
Characteristics
- Technology
- Doppler ultrasonic
- Fluid
- for water
- Installation
- portable
- Applications
- for marine applications, for underwater applications
- Other characteristics
- high-accuracy, with data logger, compact, with pressure measurement, with temperature sensor
- Precision
0.25 %
Description
Overview
Main features
Benefits and typical use cases
Technical specifications
- The CHCNAV RS3600D is a compact dual-frequency Acoustic Doppler Current Profiler (ADCP) for accurate current and flow measurements in shallow and deep water, suitable for deployment on USV, survey vessels and channel buoys.
Main features
- Dual-frequency operation: 1200 kHz and 3600 kHz; central depth beam at 600 kHz.
- 9-beam transducer: 4 beams @1200 kHz, 4 beams @3600 kHz, plus 1 vertical beam @600 kHz.
- High resolution water velocity profiling: 1 mm/s resolution and velocity accuracy ±0.25% ±2 mm/s.
- Automatic smart frequency conversion to adapt measurement frequency to water conditions.
- Onboard sensors: temperature, tilt and compass; pressure sensor optional.
- Compact and lightweight: 191 x 126 mm, approx. 2 kg for easy multi-platform mounting.
- Software and integration: HydroProfiler (PC), EasySail (USV integration), Android-based field operation.
Benefits and typical use cases
- Multi-platform deployment: optimized for USV (e.g. APACHE 4), trimarans, tow-cable systems, survey vessels and fixed channel buoys.
- High-precision measurements in very low-flow (near-still) conditions thanks to 1 mm/s resolution.
- Single instrument for both shallow and deep water surveys and a wide range of flow conditions.
- Efficient data workflow with direct result outputs, flow summary tables and one-click file transfer.
Technical specifications
- Model: RS3600D
- Instrument type: Dual-frequency Acoustic Doppler Current Profiler (ADCP)
- Frequencies: 1200 kHz and 3600 kHz; depth measurement beam at 600 kHz
- Transducer configuration: 9 beams (4 @1200 kHz, 4 @3600 kHz, 1 vertical @600 kHz)
- Velocity accuracy: ±0.25% ±2 mm/s
- Velocity profiling resolution: 1 mm/s
- Operational depth range: 0.2–100 m
- Weight and dimensions: approx. 2 kg; 191 x 126 mm
- Integrated sensors: temperature, tilt, compass; pressure sensor optional
- Data storage and management: on-board memory with synchronization via HydroProfiler / EasySail
- Software & platforms: HydroProfiler (PC), EasySail (USV), Android app; compatible with CHCNAV APACHE series and other survey platforms
