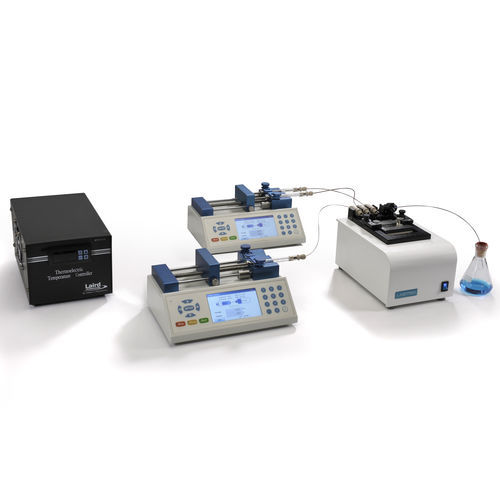

Continuous-flow bioreactor Labtrix® Start

processbenchtopmodular

Labtrix® Start is a manually operated, metal-free continuous Flow Reactor system for reaction screening & process optimisation. It's modular design gives the User flexibility on the number of feed lines, reactor type & volume. With glass Flow Reactors at the heart of the system & peripherals with a high chemical compatibility, the lab-scale system is suitable for a wide range of challenging chemistries & processing conditions. Examples of User applications: •Assessment of process feasibility under flow conditions •Exploration of novel reaction space •Process parameter optimisation & validation •Education & training •Flow rate: 0.1-100 μl/min •Flexible reactor volumes: 1 to 19.5 μl •Wetted materials: Glass, PTFE, PCTFE & FFKM •Dimensions: 1000 (W) x 800 (D) x 150 mm (H)
