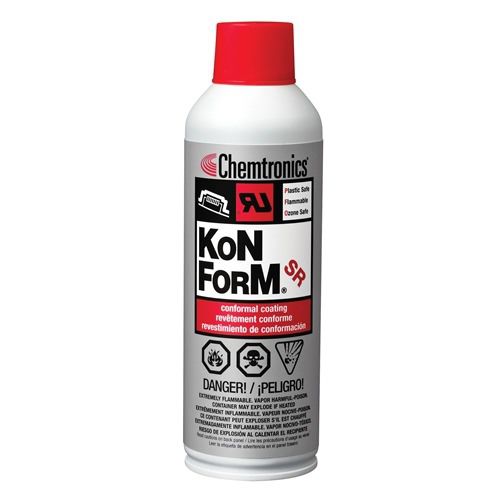

Protective coating Konform® SR

insulationsiliconefor high temperatures

Konform® SR provides maximum flexibility for extreme temperatures. This transparent conformal coating provides ideal protection for both rigid and flexible printed circuit boards. Cured coatings are hydrolytically stable and retain their physical electrical properties after high temperature and humidity exposure. Konform® SR will not stress delicate circuit components. Konform SR is available in three different viscosities to match your application process: Standard viscosity - 40± 5 cps Medium viscosity - 60± 5 cps High viscosity - 120± 5 cps FEATURES & BENEFITS Engineered for applications where flexibility and high temperature resistance are required Silicone coating stable from -85°F/-64°C to 390°F/199°C High dielectric strength of 1100 volts/mil Easily removed with Electro-Wash® Two Step or CircuitWorks® Conformal Coating Remover Pen Passes the laboratory tests of MIL-I-46058C. However, it is not qualified on QPL-46058. Compliant to IPC-CC-830A RoHS Compliant UL Recognized, File E76307 UL 94 V-0 Contains a UV indicator for Quality Control inspection using medium intensity light at 265-335 nm APPLICATIONS Extends component life by protecting against adverse environments Good insulation properties, excellent flexibility Resists moisture, salt, fungus, corrosive vapors, and severe environments Engineered to withstand heat generated by electronic circuitry as well as climatic temperatures
