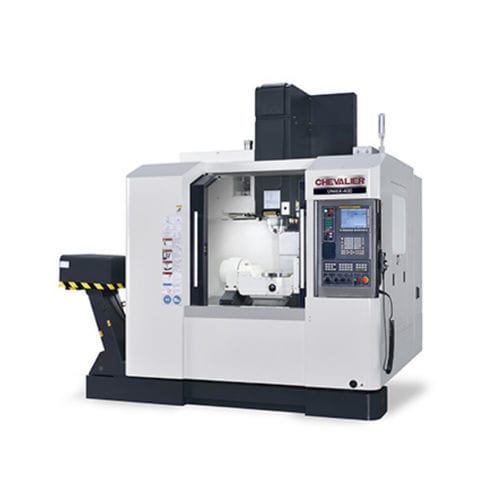

5-axis CNC milling center UNi5X-400vertical30 toolsdirect-drive
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Number of tool stations
- 30 tools
- Other characteristics
- direct-drive
- X travel
750 mm
(30 in)- Y travel
610 mm
(24 in)- Z travel
550 mm
(22 in)- Power
15 kW
(20.39 hp)- Workpiece max height
350 mm
(14 in)- Work feed X-axis
36,000 mm/min
(24 in/s)- Work feed Y-axis
36,000 mm/min
(24 in/s)- Work feed Z-axis
36,000 mm/min
(24 in/s)- Table load capacity
100 kg
(220 lb)
Description
Table Size: 320mm (12.6")
Feedrate: A-axis: 25 rpm, C-axis: 25 rpm
Spindle Taper: #40
FANUC / SIEMENS / HEIDENHAIN Control
Table Size (W x L): Ø320mm (Ø12.6")
Direct-drive spindle (12K, 15K rpm)
CTS preparation
Coolant through spindle device
40-station, chain type ATC
3-axes linear scales
A/C axis angle encoder
Workpiece measurement system
Tool length measurement
Crossfeed dual-screw chip auger
Lift-up chip conveyor
Oil skimmer
Water gun
Air conditioner for electric cabinet
Transformer
Controls
Siemens 828D control
HEIDENHAIN TNC 640 control
