Paperless recorder KR3S00 Series

paperless recorder
paperless recorder
Add to favorites
Compare this product


Measured physical value
Other characteristics
USB, panel-mount, with touchscreen, with LCD graphic display, with TFT-LCD screen, with integrated data logger, high-speed

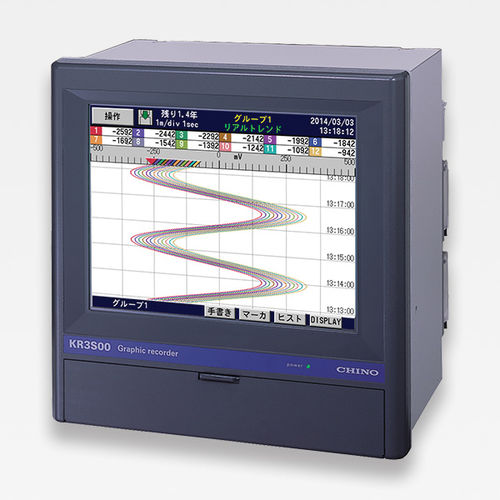

KR3S00 series are network compatible advanced paperless Graphic Recorder with high performance and high operating function along with high visibility 10.4″ TFT color LCD touch-screen display. Universal input with high speed of sampling rate 1sec. and high accuracy rating of ±0.1% realized. Measured data is stored into memory and supported up to 8GB through USB and CF card. As it can be monitored by a web browser display on several computers on intranet or internet, FTP transfer of data file and E-mail notification are also available. - Adopting clear 10.4″ TFT color LCD display - Large capacity of data memory and various recording method - Multi points stable recording with high speed/accuracy - Easy operating and programming without manual - Direct writing on the screen - Extend inputs with CHINO controllers - USB port provided in front - Support LAN network (Option) - Analyzing/data acquisition application software (Option) - Custom graphic screen for per each applications (NEW)



No catalogs are available for this product.

See all of CHINO CORPORATION‘s catalogs
