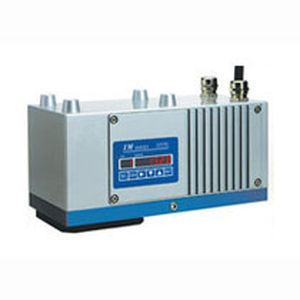

NIR analyzer IM Series
solidsmoistureinfrared absorption

NIR analyzer
NIR analyzer
NIR analyzer
Add to favorites
Compare this product


Measured entity
Measured value
moisture, infrared absorption, thickness, coating thickness
Other characteristics
simultaneous, RS485, NIR


The IM series is multi IR wavelength analyzer utilizing infrared absorption technology for measuring product moisture, organic compound, film thickness, and coating thickness etc. Using maximum ten wavelengths from near-infrared to infrared region, various constituent measurement is available. Also, simultaneous measurement up to four components can be done. - Supports multiple interfaces. - Equipped with RS-485(MODBUS), Ethernet (LAN), and analog output. - High-speed, high-sensitivity, and multiple calculations. - High-speed and high-sensitivity measurement is enabled by output update interval 28ms, and ideal optical design. Also for calculation, there are 2-color, 3-color ratio calculations, and multiple regression calculation which takes multicomponent variable factor into account and enables optimum condition setting, are available for each calibration curve individual setting. - Easy maintenance design comes with self-diagnostic function. - Motor, power supply unit, and lamp etc., design considering easy maintenance for users.
