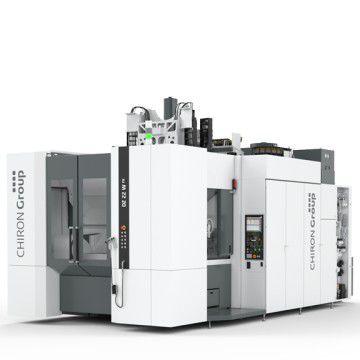

5-axis CNC milling center 22 series

verticalfor aluminumfor aluminum alloys

The 22 Series convincingly addresses the current requirements on precision, dynamics and high technical availability in the complete machining of large-volume components such as electric motor and transmission housings, oil sumps and chassis components. The foundation for this is a machine platform with a mobile gantry design. This significantly increases rigidity for even more precise machining results. Using the DZ 22 W five axis with workpiece changer and a spindle distance of 600 mm, two different main spindles can be operated, depending on the task at hand: the high-speed spindle for workpieces made from aluminum or aluminum alloys, and the high-torque spindle for hard-to-machine materials and large tools. The series also includes configurations for direct loading and a HSK-A100 interface. Highlights Rigid machine bed with a mobile gantry construction for high precision Active cooling of all components Many tools for versatile machining speed+ variant for even faster machining Process is easily visible thanks to the separation of operating and loading sides Intuitive operation via TouchLine Easy automation via robots or gantry
