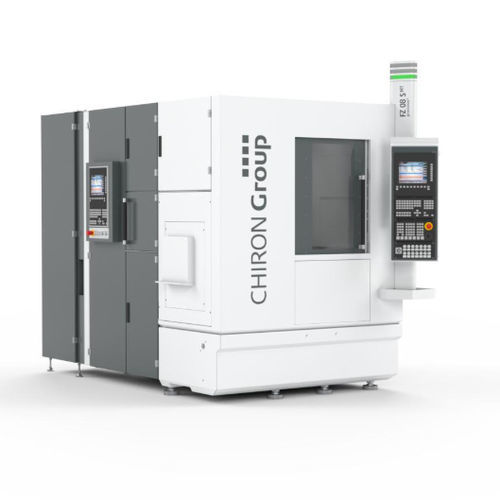

CNC turning-milling center 08 series

vertical5-axiscolumn type

Overview
Minimum tolerances in the low micrometer range and superior surface quality are achievable with the 08 Series vertical machining centers. The compact, modular machines are designed for quick setup, stable and dynamic machining, low upkeep and straightforward integration into production flows. The modular concept allows each base machine to be configured to specific manufacturing requirements.

Machine variants

• Single-spindle and twin-spindle versions
• 5-axis simultaneous machining
• Workpiece change during machining for high-volume production
• Mill-turn (mill-turning) configuration for multifunctional bar machining
• precision+ variants with linear direct drive for demanding medical and precision-technology applications

Highlights

• High dynamic performance in a compact footprint
• Vertical moving-column design
• Steel/mineral-cast machine bed for high rigidity and thermal stability
• Water-cooled motor spindles
• Dynamic direct drives and precision guides in precision+ versions
• Fully enclosed working area with stainless-steel covers
• Optimized chip flow
• Ergonomic operation and loading concept
• Easy access to units for servicing
• Modular design for tailored automation and expansion

Applications / Example applications

• Industries: Automotive, Medical Technology, Precision Technology, Toolmaking, Mechanical Engineering
• Typical parts: implants and surgical instruments, shoulder and spinal implants, knee inlays, abutments, bone plates, endoscopy components, dental drill parts, impellers, watch cases and bezels, precision rings and jewelry components, various mechanical components (valve housings, pistons, nozzle holders)

Technical specifications

• Available configurations: single-spindle, twin-spindle, 5-axis, mill-turn, workpiece-change variants
• Taper options: HSK-32 or HSK-40 (model-dependent)
• Precision+ option: linear direct drive
• Tolerance capability: few μm
• Motor spindles with water cooling
• Vertical moving-column layout and steel/mineral-cast bed
• Fully enclosed work area with stainless-steel covers
• Modular configuration enabling tailored automation and service-friendly access
