low-pressure die casting machine / hot chamber
CM series

Add to MyDirectIndustry favorites
Compare this product

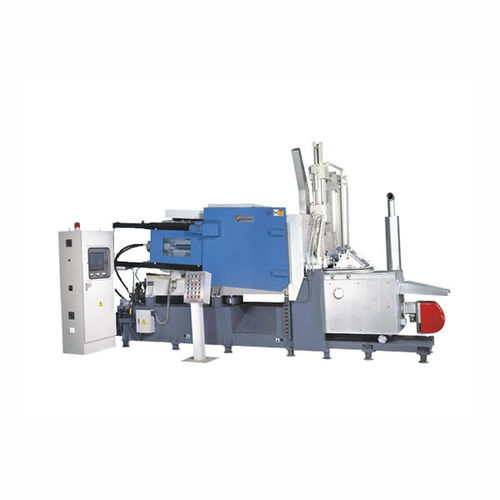

low-pressure die casting machine / hot chamber low-pressure die casting machine / hot chamber - CM series
{{requestButtons}}

Characteristics

  • Pressure range:

    low-pressure

  • Technology:

    hot chamber

Description

Control System: The human-computer interface uses touch screen with reliable performance and easy operation, providing the functions of motion simulation, faults self-diagnosis and automatic alarm. Imported encoder is used and the injection curves can be displayed for easy die casting process adjustment.
Plates: High strength cast steel is used in plates and crank shafts, the crank shaft force-expanding mechanism can ensure the reliable mold locking force and rapid mold opening speed. Tie bars are high strength SCM440Cr-plated steel. Electric or hydraulic mold adjustment mechanism is easy for mould replacement.

Hydraulic System: High efficiency cooler is used to cool oil pump with high heat-exchange efficiency and low pressure loss, ensuring the main machine can work continuously under the suitable oil temperature. Hydraulic valves and other hydraulic units of famous Japanese and German brand are used in the pressure and speed control system so that the mechanism can run smoothly, rapidly and safely with energy saving.
