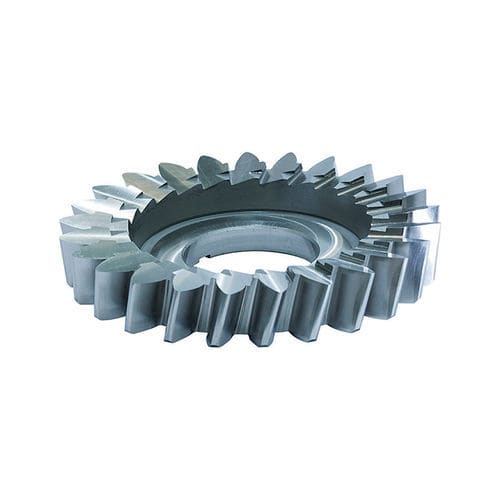

Carbide cutting tool

for special applicationsfor gears

Overview
Suitable for batch machining of internal gears in gearboxes, stepped gears, compound/multi-stage gears, internal splines in blind bores and similar parts.

Machining range
m0.4-20; minimum outer diameter for shaper cutters: Ø ≥ 8 mm.

Product types
Disc straight-tooth shaper cutter | Cup straight-tooth shaper cutter | Taper-shank straight-tooth shaper cutter
Helical shaper cutter | Special-profile shaper cutter | Carbide shaper cutter

Applications

• Batch machining of internal gears for gearboxes
• Processing of stepped and compound gears
• Internal splines and blind-bore spline machining
• Mass production of various modulus stepped gears

Features / Specifications

• Processing range: m0.4 - 20
• Minimum outer diameter: ≥ 8 mm (shaper cutters)
• Product types: disc, cup, taper-shank, helical, special-profile, carbide
• Suitable workpieces: internal gears, stepped gears, compound/multi-stage gears, blind-bore splines
• Designed for high-volume production scenarios
