Gas chromatograph Auto GCMS C10C40

GCprocessfor environmental analysis

Product Overview

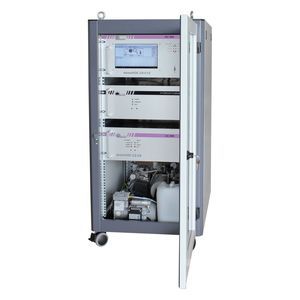

The Auto GCMS C10C40 is a transportable, ultra-compact gas chromatography–mass spectrometry (GC–MS) system for continuous analysis and identification of light semi-volatile organic compounds (SVOCs) from C10 to C40 in gases, liquids and solids. The integrated GC–QMS workflow supports quantification from low ppt levels up to percent concentrations, providing versatile on-site and laboratory-capable measurements.

Key Features

• Comprehensive sample capability:
  • Analyzes gas, liquid and solid matrices, including Bisphenol‑A and methyl stearate.
  • Validates linear alkanes up to C40 (boiling point ≈ 522°C) and detects polycyclic aromatic hydrocarbons (PAHs) up to C22, including benzo[ghi]perylene (boiling point ≈ 550°C).
• Integrated thermal management and utilities:
  • Heated selection valve for GC and internal cooling for the mass spectrometer to maintain instrument stability.
  • Built‑in hydrogen generator (Hydroxychrom USB 4U) and airmoCAL permeation calibration system for traceable calibrations.
• Flexible sampling and injection:
  • Supports direct air monitoring by injection into the QMS or via GC separation.
  • Heated sampling lines and a flexible injector enable analysis of liquids and extracts from solids.
• Software control and data management:
  • Managed by Vistachrom and VISTAMS software for full traceability, remote monitoring and injection control.
  • Features include archiving of chromatograms and results, QC alarms and data export via MODBUS / 4‑20 mA / 0‑10 V.

Applications

• Continuous monitoring of SVOCs and PAHs in ambient air, stack emissions and industrial environments.
• Analysis of contaminants extracted from solid materials (e.g., plastics such as PET) and industrial oils.
• Quantification of target compounds in gas and liquid samples for environmental monitoring, process control and research.

Standards, Approvals & Certifications
Standards and certification details are provided on the product page under the dedicated section (examples of certificates referenced to related analyzer lines).

Technical specifications

• Detection limit: Benzene down to 10 ppt with trap GC/FID/QMS; Naphthalene ≈ 10 ppt or 0.05 μg/m³.
• Detection range: ppt to ppb; 0.5 to 45 μg/m³ (mCerts tests) with direct QMS injection; QMS direct injection range 500 ppb to % levels.
• Repeatability (RSD): < 1% over 48 h (retention time); < 3% over 48 h (concentration).
• Cycle time: 30, 60, 90 or 120 minutes depending on application.
• Outputs: Timestamped data storage; optional 4‑20 mA output; optional MODBUS / JBUS or MGS1 communication.
• Supervisor: Embedded Windows®‑based computer with LED display; 64 GB SSD.
• Gas supply: H2 (FID and carrier): 45 ml/min (inlet 4 bar; 1/16'' Swagelok); Air (FID): 450 ml/min (inlet 3 bar; 1/8'' Swagelok); sample inlet via vacuum pump 1/8'' Swagelok or liquid injector.
• Power supply: 230 V / 115 V, 50 Hz / 60 Hz.
• Electrical consumption: 1730 W max.
• Dimensions (19'' cabinet): Height 1850 mm with wheels and lifting rings; Width 600 mm; Depth 800 mm.
