Gas analyzer chroma FID
organic mattermonitoringconcentration

gas analyzer
gas analyzer
Add to favorites
Compare this product


Characteristics

Measured entity
gas, organic matter
Application domain
monitoring
Measured value
concentration, pressure, pH
Configuration
for integration, compact
Mode of use
automatic
Technology
flame ionization
Other characteristics
continuous, sampling, VOC

Description

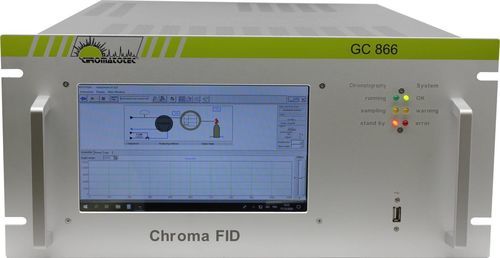

A GC/FID instrument for automatic, continuous analysis of Volatile Organic Compounds (20 ppb to ppm). Description : The ChromaFID is a gas chromatograph dedicated to the analysis of VOC’s from 20 ppb to ppm levels. The analyzer enables the continuous monitoring of the concentration of VOC compounds from C1 to C12. Principal : Automatic, continuous sampling through a sample loop Injection of the loop sample into a temperature regulated metallic capillary column. The temperature & pressure of the column is regulated by the operating software. The detection of the VOC compounds eluted from the column is performed by an FID detection system. Characteristics : The chromaFID is equipped with an integrated PC comprising of the Vistachrom program. Before delivery, the instrument is tested and validated for a minimum of 1 week by our QC department. The instrument is robust, compact and very low maintenance and offers excellent result quality : repeatability, linearity, stability and sensibility (ppb). VISTACHROM ® software : Chromatotec developed software system allows : Remote monitoring Full traceability through archiving of results and QC Set up and control of threshold alarms Export of data MODBUS / MGS1 / 4-20mA /0-10V
