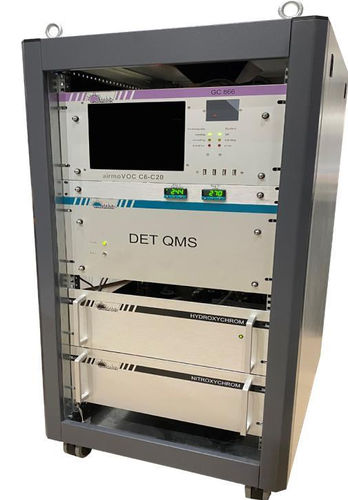

GC chromatograph Auto GCMS C6C20

gasfor environmental analysisprocess

Overview
The Auto GCMS C6C20 is a transportable ultra-compact gas chromatography–mass spectrometry system with FID detection. It delivers a turnkey solution for continuous monitoring and process control, enabling quantification and identification of aromatic hydrocarbons (PAH), BTEX and dioxin precursors in gas, liquid and solid samples from percentage levels down to low ppt.

Key Features

• Comprehensive sample analysis:
  • Analyzes gases, liquids and solids (examples: bisphenol-A, methyl stearate and other complex compounds).
  • Automatic calculation of toxicity index and total aromatics for VOCs, SVOCs, PAHs and dioxin precursors.
• Advanced technology integration:
  • Heated selection valve for GC and MS with dedicated pumps.
  • Integrated Windows®-based PC with LED display and 64 GB SSD storage.
  • Built-in hydrogen generator (Hydroxychrom USB 4U) and airmoCAL calibration with permeation tubes.
• Flexible sampling and detection:
  • Direct air monitoring via injection to MS or GC and an inbuilt heated sampling line.
  • Optional purge & trap solutions for liquid samples.
• Software control and connectivity:
  • Operated by Vistachrom and MS software for full data traceability, remote monitoring and injection control.
  • Archiving of results and chromatograms, threshold alarms and data export via MODBUS or 4‑20 mA / 0‑10 V outputs.

Technical Highlights (from Technical Specifications section)

• Detection limit:
  • Benzene down to 10 ppt with Trap GC/FID/QMS.
  • Naphthalene: 10 ppt or 0.05 μg/m³.
• Detection range:
  • ppt to ppb; direct QMS injection from 500 ppb to percent levels.
  • 0.5 to 45 μg/m³ (mCerts tests) with direct injection.
• Repeatability (RSD):
  • < 1% over 48 h (retention time).
  • < 3% over 48 h (concentration).
• Cycle time:
  • Selectable: 30, 60, 90 or 120 minutes depending on application.
• Results / outputs:
  • Timestamped data storage; optional 4‑20 mA output.
  • Optional MODBUS / JBUS / MGS1 communication protocols.
• Supervisor / embedded computer:
  • Embedded Windows® PC with LED display; 64 GB SSD.
• Gas supply:
  • H2 (FID and carrier): 50 ml/min (inlet 4 bar; 1/16'' Swagelok).
  • Air (FID): 350 ml/min (inlet 3 bar; 1/8'' Swagelok).
  • Sample inlet: vacuum pump 1/8'' Swagelok or liquid injector.
• Power:
  • Main 230 V / 115 V, 50/60 Hz; electrical consumption max 1730 W.
• Dimensions:
  • 19'' cabinet: 1850 mm with wheels and lifting rings; width 600 mm; depth 800 mm; height 1850 mm.

Applications

• Ambient air monitoring.
• Cleanroom monitoring.
• PET quality and impurity quantification.
• Contaminant and odorant quantification.
• Process control for hydrocarbons and dioxin precursors.

Standards, Approvals & Certifications
EN14662 QAL1 certificate (as listed on the product page).

Technical specifications

• Detection Limit: Benzene to 10 ppt (Trap GC/FID/QMS); Naphthalene 10 ppt or 0.05 μg/m³.
• Detection Range: ppt to ppb; direct QMS injection 500 ppb to %; 0.5 to 45 μg/m³ (mCerts tests).
• Repeatability (RSD): <1% over 48 h (RT); <3% over 48 h (Concentration).
• Cycle Time: selectable 30 / 60 / 90 / 120 minutes.
• Data and Outputs: timestamped storage; optional 4‑20 mA; MODBUS / JBUS / MGS1.
• Supervisor: Embedded Windows® PC with LED display; 64 GB SSD.
• Gas Supply: H2 50 ml/min (inlet 4 bar, 1/16''); Air 350 ml/min (inlet 3 bar, 1/8''); sample inlet 1/8'' or liquid injector.
• Power: 230 V / 115 V, 50/60 Hz.
• Electrical Consumption: max 1730 W.
• Dimensions: 19'' cabinet 1850 mm (with wheels & lifting rings); Width 600 mm; Depth 800 mm; Height 1850 mm.
• Integrated options: heated selection valve for GC, MS pumps, built‑in hydrogen generator, airmoCAL calibration system, heated sampling line, purge & trap option for liquids.
