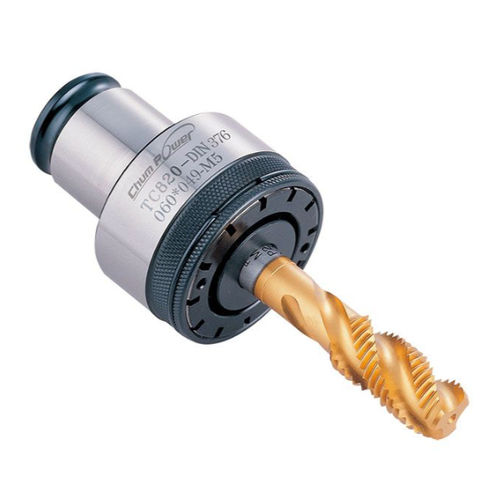

DIN tool holder 371 series

collettappingquick-change

Overload Clutch is designed to prevent tap from breaking upon tapping. *Custom-Built products are available on request. Tap collets to be ordered separately. BA352D1020101A TC312 DIN371 Tap TC JIS Tap: M1~M1.8 Tap Shank ØD: 2.5 Tap Shank□: 2.1 Capacity: M3~M14 L1 (mm): 22 L2 (mm): 25 ØD1 (mm): 19 ØD2 (mm): 32 BA352D1020102A TC312 DIN371 Tap TC JIS Tap: M2~M2.5 Tap Shank ØD: 2.8 Tap Shank□: 2.1 Capacity: M3~M14 L1 (mm): 22 L2 (mm): 25 ØD1 (mm): 19 ØD2 (mm): 32 BA352D1030101A TC312 DIN371 Tap TC JIS Tap: M3 Tap Shank ØD: 3.5 Tap Shank□: 2.7 Capacity: M3~M14 L1 (mm): 22 L2 (mm): 25 ØD1 (mm): 19 ØD2 (mm): 32 BA352D1040101A TC312 DIN371 Tap TC JIS Tap: M3.5 Tap Shank ØD: 4.0 Tap Shank□: 3.0 Capacity: M3~M14 L1 (mm): 22 L2 (mm): 25 ØD1 (mm): 19 ØD2 (mm): 32 BA352D1040102A TC312 DIN371 Tap TC JIS Tap: M4 Tap Shank ØD: 4.5 Tap Shank□: 3.4 Capacity: M3~M14 L1 (mm): 22 L2 (mm): 25 ØD1 (mm): 19 ØD2 (mm): 32 BA352D1050101A TC312 DIN371 Tap TC JIS Tap: M4.5 Tap Shank ØD: 6.0 Tap Shank□: 4.9 Capacity: M3~M14 L1 (mm): 22 L2 (mm): 25 ØD1 (mm): 19 ØD2 (mm): 32
