Nitrogen analyzer 9730sulfurchlorineconcentration

nitrogen analyzer
nitrogen analyzer
Add to favorites
Compare this product
indicative price

Characteristics

Measured entity
nitrogen, sulfur, chlorine
Measured value
concentration
Configuration
portable
Other characteristics
rugged, process

Description

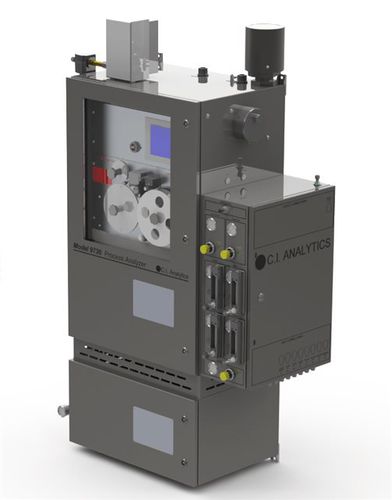

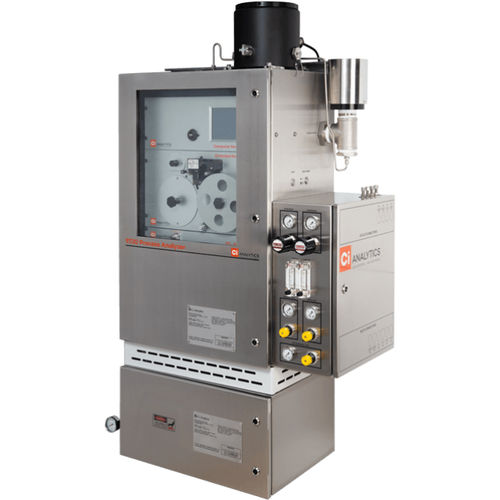

Our most popular unit in the process line-up! It’s low cost and fully loaded features make it a robust unit that can meet the stringent demands of a hazardous area, while providing the user with maximum flexibility for analysis parameters. In addition to the 9710 features, the 9730 has the capability to allow TOTAL analysis, whether it is Total sulfur or Total Chlorides. Let’s consider the following as an example: For Total Sulfur Analysis the analyzer measures the presence of sulfur in gas process streams. Through hydrogenolysis, sulfur-containing compounds are converted to hydrogen sulfide (H2S). The reaction of H2S on the Sensi-tape produces a colored stain, the darkness of which is proportional to the concentration which is measured by a sensitive photo-optical system in the analyzer. ACCESSORIES - 960P Portable Calibration Blend Generator - Utility gas filters - Sample Conditioning System (S.C.S.)
