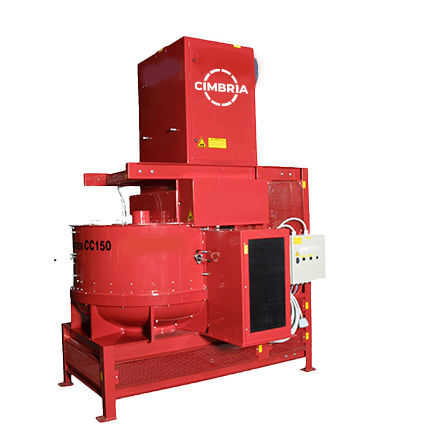

Rotary drum mixer Centricoater CC seriesbatchcontinuouscoating technology
Add to favorites
Compare this product
Characteristics
- Technology
- rotary drum
- Batch/continuous
- batch, continuous
- Applications
- coating technology, for coating line, for sludge
- Other characteristics
- automatic, high precision
- Engine power
4 kW, 5.5 kW, 10 kW, 25 kW, 50 kW
(5.44 hp, 7.48 hp, 13.6 hp, 33.99 hp, 67.98 hp)- Flow
300 m³/h, 500 m³/h, 1,200 m³/h, 2,500 m³/h
(10,594.40002 ft³/h, 17,657.33336 ft³/h, 42,377.60007 ft³/h, 88,286.6668 ft³/h)- Empty weight
500 kg, 750 kg, 1,000 kg, 3,000 kg, 5,000 kg
(1,102.3 lb, 1,653.5 lb, 2,204.6 lb, 6,613.9 lb, 11,023.1 lb)
Description
The “compact” Centricoater series is designed for easy installation at the customer’s site. Each Centricoater is pre-wired from the factory and delivered pre-tested. After connecting the grain pipes (for filling and discharging), main electric power supply, compressed air, dosing line piping and the prepared cables for each item – plug and play – the Centricoater is ready for operation.
- Designed for coating value-added seeds with costly seed treatments.
- Ensures continuous batch operation utilising a highly accurate inlet scale together with a highly accurate chemical dosing system controlled by a PLC.
- Provides improved seed coverage and more uniform distribution of treatment material on the seed compared to traditional continuously operating drum or screw-type coaters.
