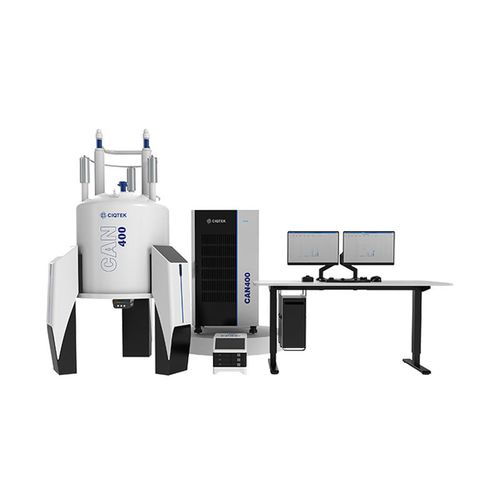

Nuclear magnetic resonance spectrometer CAN400

for the pharmaceutical industrylaboratoryfor the chemical industry

The CIQTEK CAN400 is a state-of-the-art intelligent liquid-state nuclear magnetic resonance (NMR) spectrometer, equipped with an ultra-high homogeneity, ultra-shielded 400 MHz superconducting magnet. It incorporates a multifunctional modular console, high-sensitivity fully automated tuning probes, and a range of advanced accessories. Specifications *Magnet - Magnetic Field Strength: 9.39 Tesla Room-temperature Bore Diameter: 54 mm The Radial 5 Gauss line: 0.6 m The Vertical 5 Gauss line: 1.0 m *Console - Transceiver RF Channels: Default 2, expandable to 8 Frequency Resolution: 0.0005 Hz Timing Resolution: 4 ns Phase Resolution: 0.001° RF Frequency Range: 5-1300 MHz Digital Resolution: 16 bit Maximum Receiver Spectral Width: ± 12.5 MHz *Probe - Detectable Nuclei: ¹H, ¹³C, ¹⁵N, ³¹P, ¹⁹F, ¹⁴N, ¹⁷O, ¹⁰⁹Ag, and other nuclei Deuterium Lock: Support Z Gradient Strength: 50 G / cm maximum Tuning and Matching: Rapid auto-tuning and matching are supported *Software - Operating System: Windows Supported Experiments: Data acquisition and processing capability for 1D, 2D, and other NMR experiments Experimental Data: Common NMR experimental methods are included Experimental data can be saved in universal formats Pulse: Pulse sequence editing and graphical interfaces are supported Remote Control: Enable software-controlled console power-up and power-down *Auto Sample Changer - Slots: 72 Installation Position: At the waist of the magnet Rotation Direction: Bidirectional rotation Fast Sample Exchange: Equipped with the automatic storage tube, allowing the next sample to be prepared in advance
