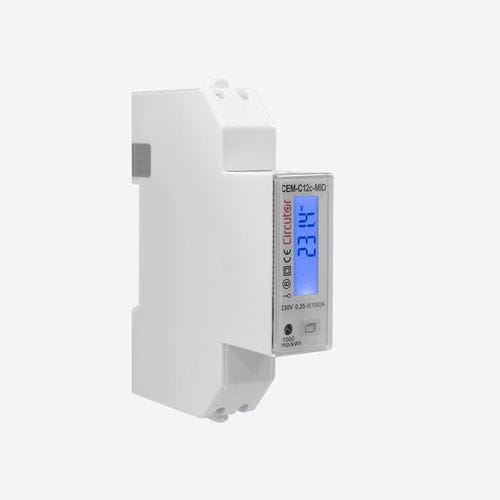

Single-phase electric energy meter CEM-C12c

DIN railRS-485Modbus

CEM-C12c is a single-phase, direct-connection electricity meter rated at up to 100 A. It measures electricity bidirectionally and features Class-1 accuracy. It also has RS-485/Modbus-RTU communications built into the same device. Main features include: Small size (1 DIN rail module, 18 mm) Backlit LCD screen (6 digits) with rotating display system Electrical parameter readings Applications To measure electricity consumption in buildings, machinery or the tertiary sector. Control of partial consumption To report electricity consumption to a remote system. Protocol: Modbus/RTU Módules: 1 Certification: IEC Communications: RS-485 System: Single-phase Measure: Direct Measurement Range (V): 1 x 127 Measurement Range (A): 5 (100) A Quadrants: 4
