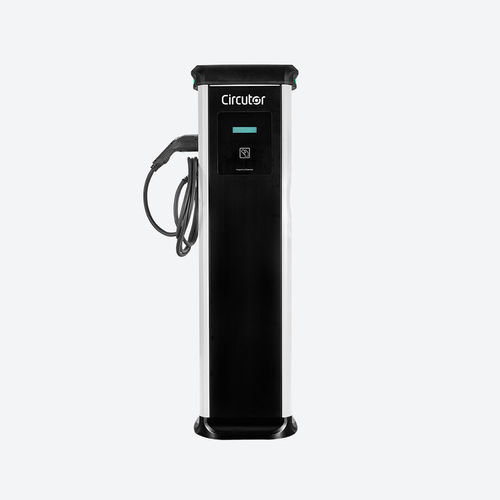

Outdoor charging post T22-C2 63

Type 2

URBAN charging posts have been designed as a robust solution for publicly accessible environments, capable of withstanding a wide range of environmental conditions and possible acts of vandalism, while providing simple installation and maintenance for operators. URBAN devices facilitate charging tasks for all kinds of EV users, incorporating all the electrical protections necessary to guarantee safety inside an aluminium metal body. They can use type 1 and type 2 cables and type 2 plugs and/or Schuko plugs in various combinations, enabling recharging in Mode 1-2 and Mode 3 depending on the configuration chosen. The URBAN series is designed for complex applications where the highest standards of performance are required, with remote management and monitoring or integration into management platforms based on the 1.5 or 1.6 OCPP protocol. Applications URBAN charging posts are especially suitable for all types of outdoor parking. Applications range from public squares, department stores, airports, vehicle sales and rental companies, private car parks, etc. Communications: Ethernet | WiFi Output type: 400 Vca - 63 A - 43 kW Input current: 64 A Connector type: Type 2 cable Grid type: Three-phase Charge mode: 3 No. Sockets: 1 Earth leakage protection: Type Bhttps://img.directindustry.com/images_di/2ai/save-En.gif
