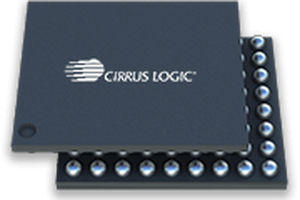

Audio codec WM8958

The WM8958 is a highly integrated, ultra-low power hi-fi codec with an integrated stereo Class D/AB speaker driver and Class W headphone driver to minimize power consumption during audio playback. The device requires only two voltage supplies, with all other internal supply rails generated from integrated LDOs. Stereo full duplex asynchronous sample rate conversion and multi-channel digital mixing combined with powerful analog mixing to support a wide range of different architectures and use cases. A smart digital microphone interface provides power regulation and a low jitter clock output and decimation filters for up to four digital microphones. A MIC activity detect with interrupt is available. Active ground loop noise rejection and DC offset correction help prevent pop noise and suppress ground noise on the headphone outputs. A multiband compressor and programmable parametric EQ provide volume maximization and speaker compensation in the digital playback paths. The dynamic range controller can be used in record or playback paths for maintaining a constant signal level, maximizing loudness and protecting speakers against overloading and clipping. Features 24-bit 4-channel hi-fi DAC and 2-channel hi-fi ADC 100 dB SNR during DAC playback (‘A’ weighted) Smart MIC interface Power, clocking and data input for up to four digital MICs High performance analog MIC interface MIC activity detect & interrupt allows processor to sleep
