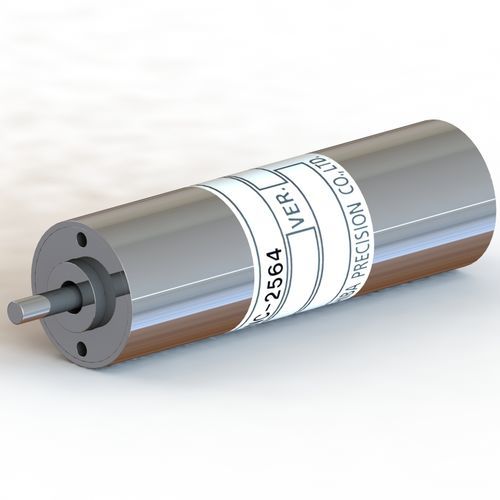

Coreless servomotor NC-2564 series
DCinduction24 V

coreless servomotor
coreless servomotor
coreless servomotor
coreless servomotor
coreless servomotor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
induction
Voltage
24 V, 12 V
Configuration
permanent magnet, coreless, compact, miniature, small
Cooling mechanism
air-cooled
Other characteristics
high-speed, high-precision, low-noise, low-vibration, low-speed
Power

17.4 W, 17.7 W, 34.9 W, 35.6 W
(0.024 hp, 0.024 hp, 0.047 hp, 0.048 hp)

Intensity

Min.: 50 mA

Max.: 12,500 mA

Torque

0.0294 Nm, 0.1989 Nm, 0.2029 Nm
(0.0217 ft.lb, 0.1467 ft.lb, 0.1497 ft.lb)

Rotational speed

5,800 rpm, 5,900 rpm, 6,870 rpm
(36,442.47 rad.min-1, 37,070.79 rad.min-1, 43,165.48 rad.min-1)

Diameter

25 mm
(0.98 in)

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 50 °C
(122 °F)

Description

As the inertial momentum of the rotor and the mechanical constant of the product are both small, activation and shutdown can be swiftly performed to offer superior responsiveness. No cogging means fewer vibrations and low noise, allowing smooth revolution even at low speeds and highly precise control. Since the armature inductance of the coils are low and rectification is favorable, the service life of the rectifier and brush are long and can suppress electrical noise at very low levels. No iron loss means high speed revolutions are possible under highly magnetic fields, and we also offer compact high output models with several tens of thousands of RPM. The design used for this product excels magnetically, electrically and in thermal resistance. Additionally, its sufficient mechanical strength means an enormous output per unit volume for this servomotor.

Catalogs

No catalogs are available for this product.
