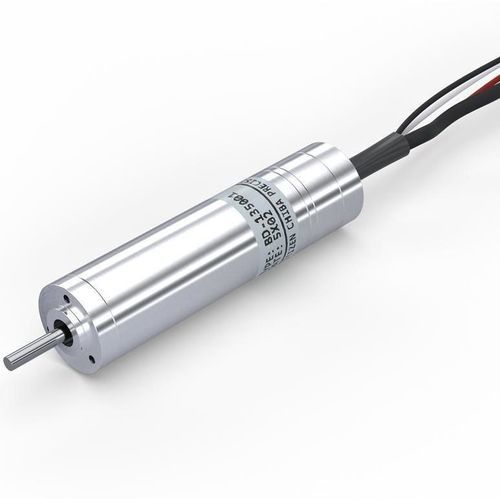

BD-1350 — DC motor for industrial/precision applications (Manufacturer: CITIZEN CHIBA PRECISION CO.,LTD.)

Overview
The BD-1350 is a compact 2-pole DC motor designed for precision industrial applications. It is specified with measurements taken using an aluminum heat sink (57×57×5t) mounted to the motor flange. Gearheads and magnetic incremental encoders are available as optional mounts. Standard BSD-36 Series drivers are factory-set to a 5,000 rpm maximum, with custom driver options available to permit operation above 5,000 rpm.

Key motor specifications

• Model: BD-1350
• Manufacturer: CITIZEN CHIBA PRECISION CO.,LTD.
• Number of poles: 2
• Rated input voltage: 24 ± 5% V
• Line resistance: 11.9 Ω
• Torque constant: 14.1 mN·m/A
• Back EMF constant: 1.47 V/K rpm
• No-load speed: 16,500 rpm (measured with specified heat sink)
• Rated speed: 12,670 rpm (measured with specified heat sink)
• Max continuous current: 0.33 A (measured with specified heat sink)
• Maximum continuous torque: 4.65 mN·m (measured with specified heat sink)
• Rated output: 6.2 W (measured with specified heat sink)
• Weight: 36 g
• Standard driver series: BSD-36 (standard max speed set to 5,000 rpm; customizable for higher speed)

Encoder (optional)

• Type: Magnetic incremental
• Supply: DC +5 V ± 5%
• Current consumption: 30 mA
• Output levels: High ≥ 3.2 V / Low ≤ 1.0 V
• Max output current: ±20 mA
• Channels: 3 (A, B, Z)
• Output pulses: 512 P/R
• Max response frequency: 1,700 kHz
• Output circuit: Line driver / TTL

Motor with gearhead (examples)
Model example: BD-1350□□G ZCP 1/xxx (φ13). Available reduction ratios and typical rated values:

• Reduction ratios: 4, 16, 24, 64, 96, 144*, 256*, 384*, 576*, 864*
• Corresponding rated torque (N·m): 0.015, 0.048, 0.071, 0.152, 0.228, 0.260, 0.400, 0.400, 0.400, 0.400
• Corresponding rated speed (rpm): 1,540; 381; 254; 94; 63; 55; 29; 29; 24; 17
• Corresponding rated output (W): 2.4; 1.9; 1.9; 1.5; 1.5; 1.5; 1.2; 1.2; 1.0; 0.7
• Length L (mm): 15.1; 17.5; 17.5; 21.4; 21.4; 21.4; 25.3; 25.3; 25.3; 25.3

Notes and recommendations

• Performance values marked as measured are based on tests with an attached aluminum heat sink (57×57×5t); actual values depend on driver, encoder and mounting conditions.
• The BSD-36 Series standard driver is preset to a 5,000 rpm maximum; custom driver settings can allow operation above 5,000 rpm.
• When selecting gearhead ratios marked with an asterisk (*), verify the allowable output torque of the gearhead to avoid overload.
• For detailed performance graphs and interpretation, refer to the 'Detail of the Motor Characteristics'.
