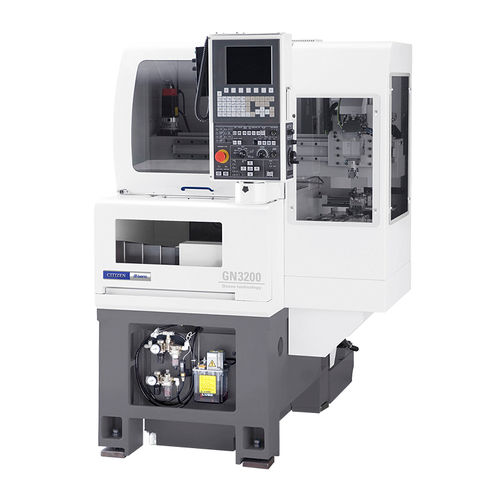

CNC turning machine GN32002-axishigh-precisionhigh-speed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Other characteristics
- high-precision, high-speed, with turret, single-spindle, with gantry loader
- Diameter
35 mm, 40 mm
(1.38 in, 1.57 in)- Spindle speed
Max.: 8,000 rpm
(50,265.482 rad.min-1)Min.: 80 rpm
(502.655 rad.min-1)- Maximum part length
50 mm
(2 in)- Axe X
180 mm
(7 in)- Axe Z
200 mm
(8 in)- Nominal power
1.5 kW, 2.2 kW
(2 hp, 3 hp)- Overall lenght
700 mm
(28 in)- Overall width
1,460 mm
(57 in)- Overall height
1,600 mm
(63 in)- Weight
1,500 kg
(3,307 lb)
Description
The single-slide mechanism that provides high damping maximizes micromotion tracking to reduce lost motions down to nearly none
The incorporation of a high-speed gantry loader with a loading time of 3.5 seconds and a wide choice of infeed and outfeed devices allows stand-alone automation or integration with other processes.
