Brushed motor SCR10-17 series
DC6 V3 V

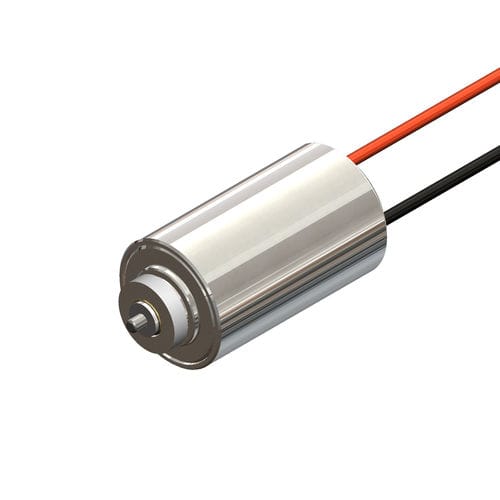

Brushed motor - SCR10-17 series - Citizen Micro Co., Ltd. - DC / 6 V / 3 V
Brushed motor - SCR10-17 series - Citizen Micro Co., Ltd. - DC / 6 V / 3 V
Brushed motor - SCR10-17 series - Citizen Micro Co., Ltd. - DC / 6 V / 3 V - image - 2
Add to favorites
Compare this product

Characteristics

Type
brushed, DC
Voltage
6 V, 3 V
Configuration
permanent magnet, coreless
Other characteristics
with sleeve bearing
Power

0.27 W, 0.3 W, 0.3 W, 0.44 W
(0 hp, 0 hp, 0 hp, 0 hp)

Intensity

Max.: 517 mA

Min.: 9.1 mA

Torque

Max.: 0.0012 Nm
(0.000885 ft.lb)

Min.: 0.0002 Nm
(0.000148 ft.lb)

Rotational speed

Max.: 13,800 rpm
(86,707.9572 rad.min-1)

Min.: 8,680 rpm
(54,538.0485 rad.min-1)

Diameter

10 mm
(0.39 in)

Description

It is no exaggeration to say that DC motors are used in every corner of the environment surrounding our lives. It is widely used in various forms. For example, in terms of living, air conditioning equipment such as air conditioners, refrigerators, water heaters, etc. In terms of work, it is also used inside projectors installed in offices and ATM terminal equipment used in financial institutions. In addition, its use is expanding to housing equipment, measuring instruments, automobiles, medical equipment, etc. centering on ventilation systems. DC motors are produced in large quantities and are extremely important for the living environment and the global environment in order to suppress noise and realize energy savings.
