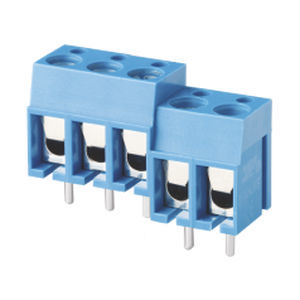

PCB terminal block WJ300-5.0

screw connectionstandardIEC

This typical feature of this kind connector is easy and strong connection extremely by screw. Provide the wire size from 0.08mm2 to 35mm2, Available with different pitch from 2.54mm to 15.0mm. The product is designed in accordance with IEC60947, UL1059, CSA C22.2 NO.158 standard. Wire range: 22-14 AWG Pitch:5.0 mm Mounting: Wave soldering UL/CUL Use Group B - C - D Rate Voltage [V] 250 - - - 250 Rated Current [A] 16 - - - 10 Wire Range [AWG] 22~14 Dielectric Voltage-Withstand 1.5KV IEC Overvoltage Category III - III - II Contamination Class 3 - 2 - 2 Rated Voltage [V] 250 - 400 - 630 Rated Current [A] 24 - 24 - 24 Impulse withstand voltage [KV] 4 - 4 - 4 Conductor cross section[solid/flexible] [mm²] 0.5~2.5 Material Insulation Material PA66 Flame relardant rating UL94V-0 Conductor Material Copper alloy Plating of conductor surface Sn plated
