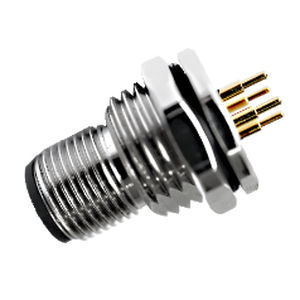

Data connector M12 serieselectrical power supplyPCBcircular
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Format
- PCB
- Shape
- circular
- Connection type
- male, screw-locked
- Size
- M12
- Electrical characteristics
- AC/DC
- Material
- PA, copper alloy, nickel-plated
- Domain
- industrial, for electronic components
- Protection class
- IP67
- Norms
- RoHS
- Other characteristics
- IEC, panel-mount
- Primary current
1.5 A, 2 A, 4 A
- Voltage
30 V, 60 V, 250 V
- Operating temperature
Max.: 105 °C
(221 °F)Min.: -40 °C
(-40 °F)
Description
M12 circular connector series is suitable for signal, data and power transmission of industrial electronic equipment. WanJie can provide various innovative equipment connectors and connector cables for customers.
Standard -
IEC61076-2-101
Insulation Resistance -
≥100MΩ
Contact Resistance -
≤10mΩ
Mating Endurance -
>100 Mating Cycles
Material Data
Connector Contacts -
Copper Alloy With Gold Plated
Connector Nut/Screw -
Copper Alloy With Nickel Plated
Seal/O-Ring -
FKM
Shielding -
Unshielded
Length of the Solder Pin -
6mm
Electrical Data & Mechanical Date
Contacts Pin -
3/4Pins - 5Pins - 6/8Pins - 12/17Pins
