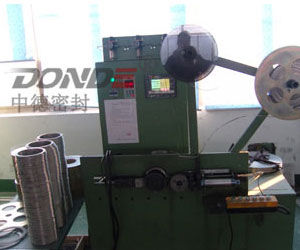

Gasket winding machine ZD-M500

semi-automatic

It is a vertical semi-automatic winding machine, just feed metal strip and filler material to produce spiral wound gasket with inner ring or without inner ring. Setting product quantity, revolutions and size etc. simply by touch screen interface, which insure the repeatability of quality. Option: 1.V or W profile, thk 3.2mm 4.5mm 6.4mm 7.2mm 2.Including molds of ASME 2”-10” 150LBS with inner ring and without inner ring (Normal for ASME B16.20, from 2” to 18”, other standard on request) Molds of other standard or customized size are available on request
