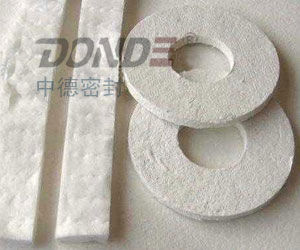

Flange gasket ZD-G2081

doorfurnace

Made from ceramic fiber paper.It could be cut into suitable shapes. Heat Insulation Gaskets are appropriate when an inexpensive heat seal is required. Only used where sealing pressures are low, it happily operates in areas where temperatures are in excess of 1472 F. It is soft and can be easily laminated to form thicker seals, hence flange finish is not particularly important when using this material. Comressive trength:0.38Mpa Thickness:0.5-6mm Application:Used mainly as high temperature insulation for sensitive apparatus it has good dielectric strength and so is often used as an electrical insulation. Usually supplied with an organic binder to improve it's tensile strength. Tipical applications: Insulationg and sealing pat; Insulating for electric apparatus; Muffler of car; Aliminating voice and insulation for vent pipe; Materials for hot filtration; Instead of asbestos paper; Internal and external lining for furnace and kilns and heating device; Joint sealing and filling insulation(kiln car,pipeline,kiln door and so on). Warning: Gasket materials should never be recommended when both the temperature and the pressure are at the maximums listed. Properties and applications shown are typical. No application should be undertaken by anyone without independent study and evaluation for suitability. Never use more than one gasket in one flange joint, and never reuse a gasket. Improper use or gasket selection could cause property damage and/or serious personal injury. The data reported is a compilation of field testing, field service reports and/or in-house testing.
