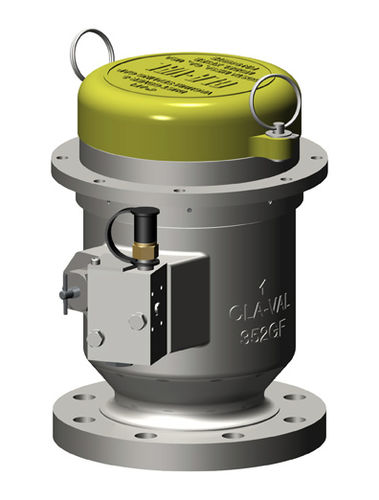

Poppet excess-flow valve 352GF
industrial

poppet excess-flow valve
poppet excess-flow valve
Add to favorites
Compare this product


Characteristics

Type
poppet
Applications
industrial
Temperature

Max.: 140 °F (60 °C)

Min.: -40 °F (-40 °C)

Description

• Complies with EI Specification 1584 Third Edition • Pneumatic or Manual Deadman operated • Optional Emergency Air Release Lanyard for the Pneumatic Deadman Version • Optional Excess Flow Shut-off for Both the Pneumatic and Manual Deadman Versions • Body of Ductile Iron and Stainless Steel – No Aluminum • Operating Temperature: -40 to + 140 F • Fits Within 13 Inch Diameter Pits • Three Year Warranty The Model 352GF Hydrant Pit Valve is a piston style, Deadman operated on / off valve designed for use in aircraft refueling hydrant systems. The Model 352GF Hydrant Pit Valve can be ordered with either a Manual Deadman Pilot or a Pneumatic Deadman Pilot. When fitted with a Pneumatic Pilot, an optional Emergency Air Release Lanyard Manual override can be added to provide a way to close the Pit Valve even with Deadman air pressure actively applied. The outlet of the Model 352GF Hydrant Pit Valve can be connected to by any 4 inch API hydrant pit coupler, such as the Cla-Val Model 351GF-15 Hydrant Coupler and 353GF Pressure Control Coupler. It complies with the requirements of EI Specification 1584 Third Edition. The upper API Body of the Model 352GF Hydrant Pit Valve is made of hardened Stainless Steel. The lower body is made of Ductile Iron. Aluminum is not used for these critical pressure containing components. It incorporates a servicing valve which allows for the removal of the pilot for service without the need to de-pressurize the delivery system. The Model 352GF Hydrant Pit Valve is small enough to fit into a 13 inch pit box with the use of an offset adapter plate.
