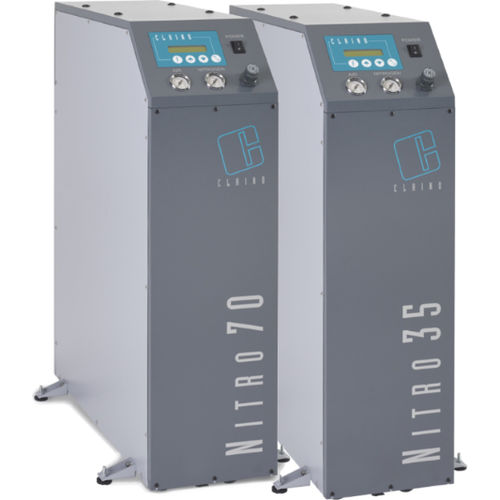

LC/MS nitrogen gas generator Nitro 35 and 70

PSAmembranemedium flow rate

Designed for LCMS e Sample preparation GAS TYPE nitrogen PURITY up to 99.9% CONFIGURATION - - Available in 2 models with different capacities: - Nitro 35 model with capacity up to 35 Nl/min - Nitro 70 model with capacity up to 70 Nl/min - Purity up to 99.99% (H20 < - 55°C Dew Point and HCT < 0.01 ppm) - Equipped with full turn wheels to facilitate moving - 24 liter internal tank that lengthens the stand-by periods - Membrane keyboard for making fast, easy commands FLOW RATE - up to 35 Nl/min from the Model 35 up to 70 Nl/min from the Model 70 TECHNOLOGIES EMPLOY - PSA OUTPUT PRESSURE - 0 - 6,5 bar/0 – 94 psi PURITY - up to 99,99% MOISTURE - <-50°C dew point ATP AIR INPUT CHARATERISTICS - particulate ≤ 0,01 µm - Oil vapors ≤ 0,01 mg/m3 moisture ≤ 3° C dew point in pressure min pressure : 8.5 bar/120 psi medium flow rate: Model 70 up to 170 Nl/min Model 35 up to 90 Nl/min ELECTRICAL SUPPLY - 115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W INDEX OF PROTECTION - IP20 OPERATING TEMPERATURE - + 5°C ÷ + 40°C ENVIRONMENTAL HUMIDITY - 5 ÷ 80% MAX ALTITUDE - 2000 m asl DIMENSIONS - Height: 92 cm/36” Width: 26,5 cm/10” Depth: 75 cm/29” WEIGHT - 90 kg/198 lbs Model 70 75 kg/154 lbs Model 35
