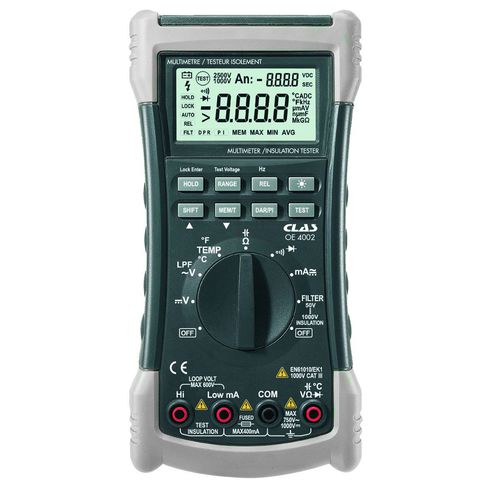

Digital multimeter OE 4002

portable1000 V600 V

Specially designed for hybrid and electric vehicles, this device can measure the isolation of electrical equipment, as well as a voltage up to 1000V. It allows the measurement of DC and AC voltage, DC and AC current, temperature, resistance, capacity, isolation and frequency. Suitable for the "low voltage" requirements of authorisations: BCL, B2VL, B2TL, B2XL ... Specifications: Complies with IEC/EN 61010-1 1000V CAT III, 600V CAT IV. 1000V DC Voltage, 750V AC Voltage (TRMS). - DC voltage: 600mV-6V-60V-600V-1000V - AC voltage 600mV-6V-60V-600V-750V - DC current: 60mA-400mA - AC current: 60mA-400mA - 6600 counts (except for capacity, temperature and insulation measurement) - when the input terminals are V and COM, the protective voltage overload is up to 250V AC (TRMS). - when the input terminals are mA and COM, the protection current is 0.4A. - when the input terminals are Hi and Lo, the protective voltage overload is 600V. - display of minimum average values - 4 AA batteries (NEDA 15A or IEC LR6) for 1000 hours of battery life for the insulation test. - the multimeter can perform at least 1000 insulation tests with new alkaline batteries at room temperature. These are standard tests of 1000V in 1MΩ with a duty cycle of 5 seconds on and 25 seconds off. - resistance: 600ohm-6kohm-60kohm-600kohm-6Mohm-60Mohm - insulation measurement range: 0.01MΩ to 2GΩ.
