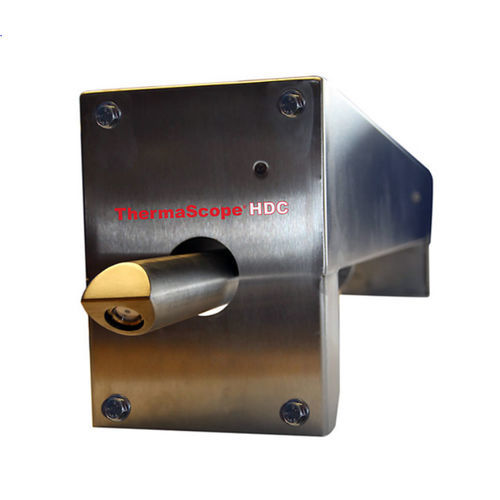

Furnace camera HDC

monitoringfull-colorCCD

High definition, high speed ThermaScope HDC colour kiln cameras provide high quality imaging from inside the kiln or cooler. Based on Thermoteknix’ proprietary miniature CCD with high resolution progressive scan technology, it provides real time display inside the kiln/cooler for combustion and clinker detailed monitoring. Minimal maintenance, the all-digital ThermaScope HDC kiln camera gathers invaluable image and data from the heart of the clinker-making process to the control room. Greater confidence throughout the combustion and manufacturing process. ThermaScope HD kiln cameras work in conjunction with ThermaScope HD Multi-View real time software PERFORMANCE – CAMERA •CCD Format: 1280 x 960 •Display: 1280 x 720p (HD) Progressive Scan •Dynamic range: >115db •Colour: 12 bit •Response: 5.48 V/lux-sec •Frame Rate: 60Hz •Aperture Control: Automatic PERFORMANCE – LENS •Fixed focus:0.2m - infinty •Aperture: f/2.4 •Field of view: Diagonal: 89°, Horizontal: 81°, Vertical: 51.5°
