Asynchronous motor SPM series
three-phase400 Vstainless steel

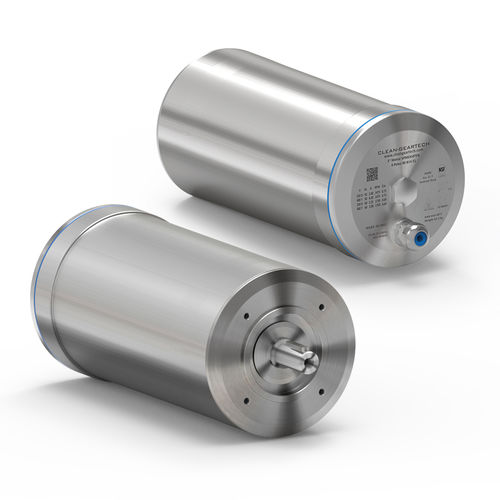

Asynchronous motor - SPM series - CLEAN-GEARTECH - three-phase / 400 V / stainless steel

Add to favorites

Compare this product

Characteristics

Type

asynchronous, three-phase

Voltage

400 V

Configuration

stainless steel, TENV

Protection class

IP69K, for extreme conditions

Number of poles

4-pole

Cooling mechanism

IC410

Applications

food

Other characteristics

precision

Power

Max.: 3 kW
(4.08 hp)

Min.: 0.12 kW
(0.16 hp)

Intensity

Max.: 5.5 A

Min.: 0.45 A

Torque

Max.: 9.8 Nm
(7.228109 ft.lb)

Min.: 0.6 Nm
(0.442537 ft.lb)

Rotational speed

Max.: 3,545 rpm
(22,273.8919 rad.min-1)

Min.: 2,890 rpm
(18,158.4055 rad.min-1)

Operating temperature

80 °C
(176 °F)

Description

It is ideal for extreme conditions. Smooth surfaces and stainless steel are the ideal solutions where the hygienic requirements are strict, like in the Food and Beverage Industry, in order to avoid bacterial contamination. The motor is easy to clean, resistant to rust and corrosion. The IP69K rating provides ultimate protection against high pressure (100 bar) hot water (80°C) sprays. Meat&poultry, dairy, seafood equipments are very demanding in terms of corrosion resistance: our motors can face these challenges. Totally Enclosed Non-Ventilated IC410 (TENV), hygienic smooth surfaces: no ribs, no fins. Die cast aluminum rotor, precision balanced G2,5 according to ISO1940-1 2003
