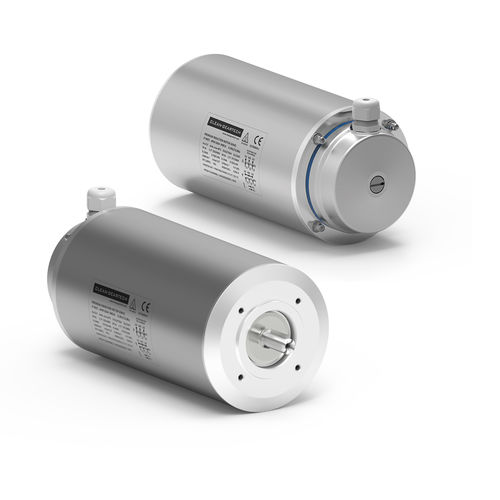

AC motor APM SRIESasynchronousthree-phase380 V
Add to favorites
Compare this product
Characteristics
- Type
- AC, asynchronous, three-phase
- Voltage
- 380 V, 400 V
- Configuration
- TENV
- Efficiency classes
- IE3, IE4
- Number of poles
- 2-pole, 4/6 poles
- Cooling mechanism
- IC410
- Other characteristics
- precision
- Power
Min.: 0.12 kW
(0.16 hp)Max.: 2.2 kW
(2.99 hp)- Intensity
Min.: 0.45 A
Max.: 3.9 A
- Torque
Min.: 0.6 Nm
(0.442537 ft.lb)Max.: 7.2 Nm
(5.310447 ft.lb)- Rotational speed
Min.: 2,890 rpm
(18,158.4055 rad.min-1)Max.: 3,520 rpm
(22,116.8123 rad.min-1)
Description
It is a basic solution to reduce dust accumulation, where hot water wash down is used (without agressive detergents).
Totally Enclosed Non-Ventilated IC410 (TENV), hygienic smooth surfaces: no ribs, no fins.
Die cast aluminum rotor, precision balanced G2,5 according to ISO1940-1 2003
Catalogs
WASHDOWN ELECTRIC MOTORS
44 Pages
Other CLEAN-GEARTECH products
Smooth surface aluminum gearboxes
