Automatic sandblasting machine HSP-200 Performance

air-abrasivemobile

Overview

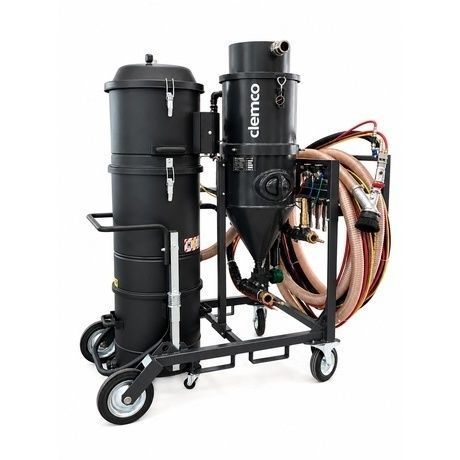

The HSP-200 Performance is a mobile closed-circuit dust-free blast machine designed for parts that cannot fit in standard blast cabinets. It is intended for precise rework tasks such as removing residues on weld seams. The system reduces airborne dust emissions and lowers the need for extensive external containment measures.

Operation and benefits
The blasting head suctions abrasive and dust directly, eliminating the need for an additional enclosure of the workpiece and increasing process efficiency. An integrated rebound separator cleans and recycles used abrasive so only material with active abrasive effect is reused, reducing media consumption and operating costs.

Mobility and handling

• Wheeled frame for easy on-site relocation.
• Removable transport handle enables secure movement on Euro pallets without protruding parts.
• Integrated forklift pockets for safe workshop or warehouse handling.

Main features

• Abrasive media recovery and recycling system.
• EDBH-70 blast head with 8 mm boron carbide nozzle.
• Standard 10 m hose package.
• Cartridge filter pack (3 × 3 m²) with automatic cleaning and HEPA H14 filtration.
• Integrated vacuum unit and mobile frame.
• Dust hopper on wheels (45 L).

Product data (table)
Area of application: dust-free blasting
Total dimensions (W x H x D): 710 x 1630 x 1370 mm
Weight: 220 kg
Tank capacity: 40 L
Air consumption (blasting): 3 m³/min at 5 bar (8 mm nozzle)
Suction air consumption: 1.5 m³/min
Surface coverage: 3 - 10 m²/h
Abrasive media: suitable for all common media
Blasting pressure: 4 - 7 bar
Maximum blast hose length: up to 50 m (depending on media)
Nozzle size: 8 mm (boron carbide on EDBH-70)
Filter cartridges: 3 × 3 m² with automatic cleaning
Dust hopper volume: 45 L (on wheels)
Included: abrasive recovery system, EDBH-70 blast head, 10 m hose package, cartridge filter (3×3 m²) with auto-cleaning, HEPA H14, vacuum unit, mobile frame, forklift pockets, removable transport handle

Notes
* Values are indicative and may vary depending on configuration and operating conditions.

Technical specifications

• Model: HSP-200 Performance
• Application: dust-free abrasive blasting
• Dimensions (W x H x D): 710 x 1630 x 1370 mm
• Weight: 220 kg (approx.)
• Tank capacity: 40 L
• Blasting air consumption: 3 m³/min at 5 bar (8 mm nozzle)
• Suction air consumption: 1.5 m³/min
• Surface performance: 3 - 10 m²/h
• Nozzle size: 8 mm (boron carbide)
• Filter area / cartridges: 3 m² / 3
• Dust hopper: 45 L (on wheels)
• Max hose length: up to 50 m (depending on abrasive)
