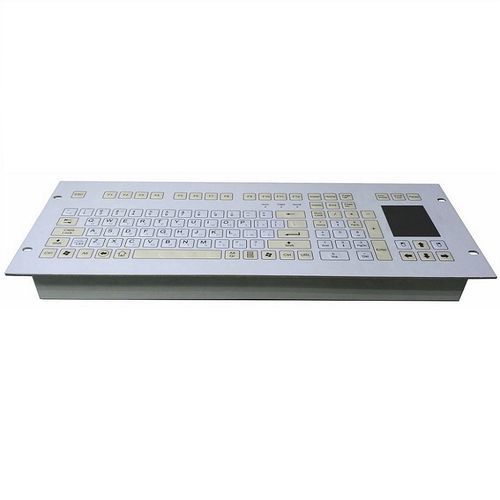

Panel-mount keyboard CK-ME483188-TP

membranewith touchpadwith mouse

-front mounting panel with mounting holes -Integrated rugged sealed tough touchpad -Metal dome key switches -Supper flat antibacteria surface Description: IP65 rated waterproof rugged sealed industrial membrane keyboard with integrated sealed tough touchpad mouse, this is a compact, and fully-rugged 304 stainless steel keyboard. The front surface is specially designed with one piece durable seamless membraneous polyester to meet IP65 specifications, which means it is resistant to harsh environment such as dirt, dust, water, ice, salt mist, chemical liquids, corrosives, disinfectants, oil, etc. Technical data: Operating Temperature: - -20 °C to +60 °C Storage Temperature: - -30 °C to +70 °C Waterproof rate: - IP65 Shock resistance: - 3 axis 150 m/s² -11 ms, IEC 60512-4 Electronics: - Industrial level Humidity Resistant - 100% Vibration resistance: - 5 Hz -200 Hz, IEC 60512-4 Actuation Force: - 1.5N+/-0.1N Key Travel: - 0.5mm Key switch Lifetime: - 5 mil. Operations Lifetime of touchpad: - more than 10 mil. slide Lifespan: - > 3 years MTBF: - >50000H MTTR: - <30min G.W.: - appr. 1.8KGs Supply Voltage: - +5V DC +/- 5% Current Rating: - appr. 50mA EMC Emission: - EN55022(B) Saline mist: - 96 hours, IEC 60512-6 Damp heat test: - at + 40º C: 21 days, IEC 60512-6 Dry heat test: - at + 85º C: 10 days, IEC 60512-6 OS: - Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android Touchpad mouse: - -Mutual Capacitance sensing -X/Y position sensing resolution: 40 counts/mm -X/Y position reporting: Relative -Output (self-detectable depending on cable): PS2 or USB -Tracking speed: Maximum 1,016 m/sec -Power supply voltage: 5 VDC ± 0.25V
